Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 397

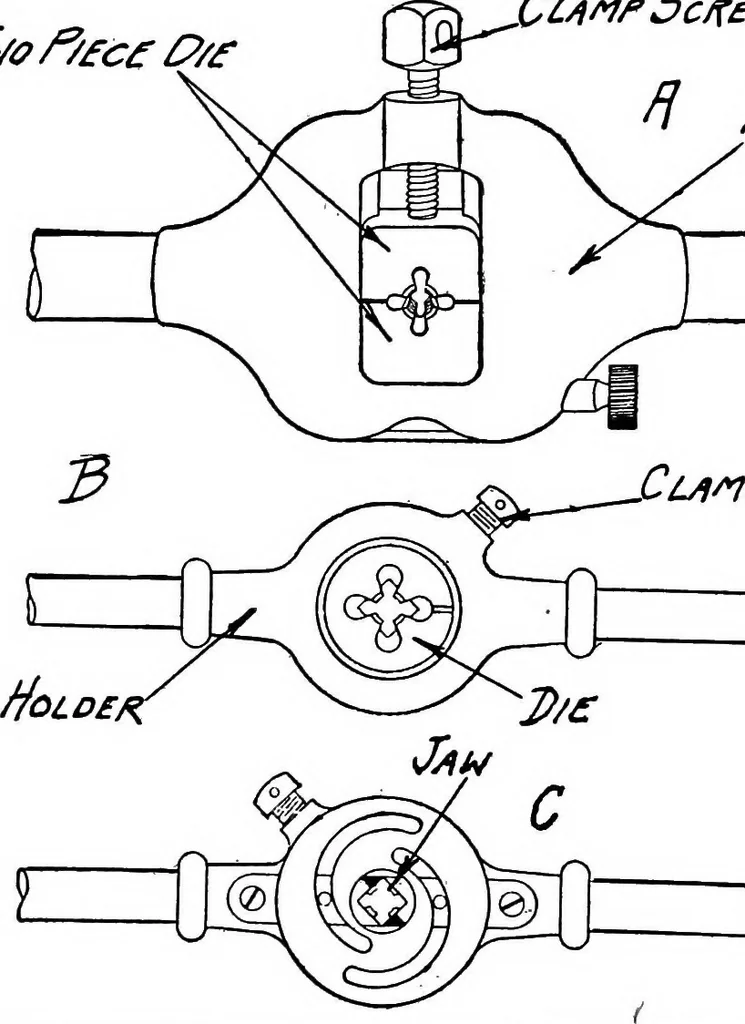

en a two-piece die is em-ployed is also clearly outlined. The diestock shown atB is used for the smaller dies of the one-piece pattern,having a slot in order that they may be closed up slightly 396 Aviation Engines by the clamp screw. The reverse side of the diestockshown at B is outlined below it,… … MlfScttts/ J Fig. 172.—Showing Holder Designs for One- and Two-Piece Thread Cutting Dies. shown. These movable guide members have small pinslet into their surface which engage the slots, and theymay be moved in or out, as desired, according to the posi-tion of the adjusting plate. The use of the…
