Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 395

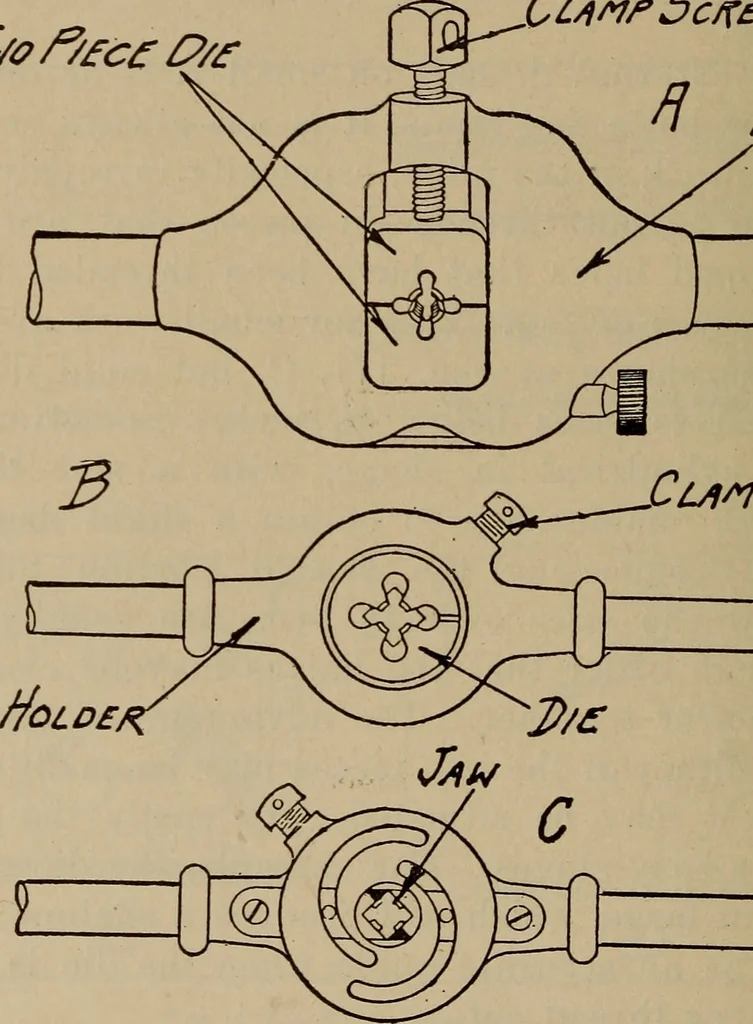

die is em-ployed is also clearly outlined. The diestock shown atB is used for the smaller dies of the one-piece pattern,having a slot in order that they may be closed up slightly 396 Aviation Engines by the clamp screw. The reverse side of the diestockshown at B is outlined below it, and the guide… … 5 M^rSctttst Fig. 172.—Showing Holder Designs for One- and Two-Piece Thread Cutting Dies. shown. These movable guide members have small pinslet into their surface which engage the slots, and theymay be moved in or out, as desired, according to the posi-tion of the adjusting plate. The use of the…
