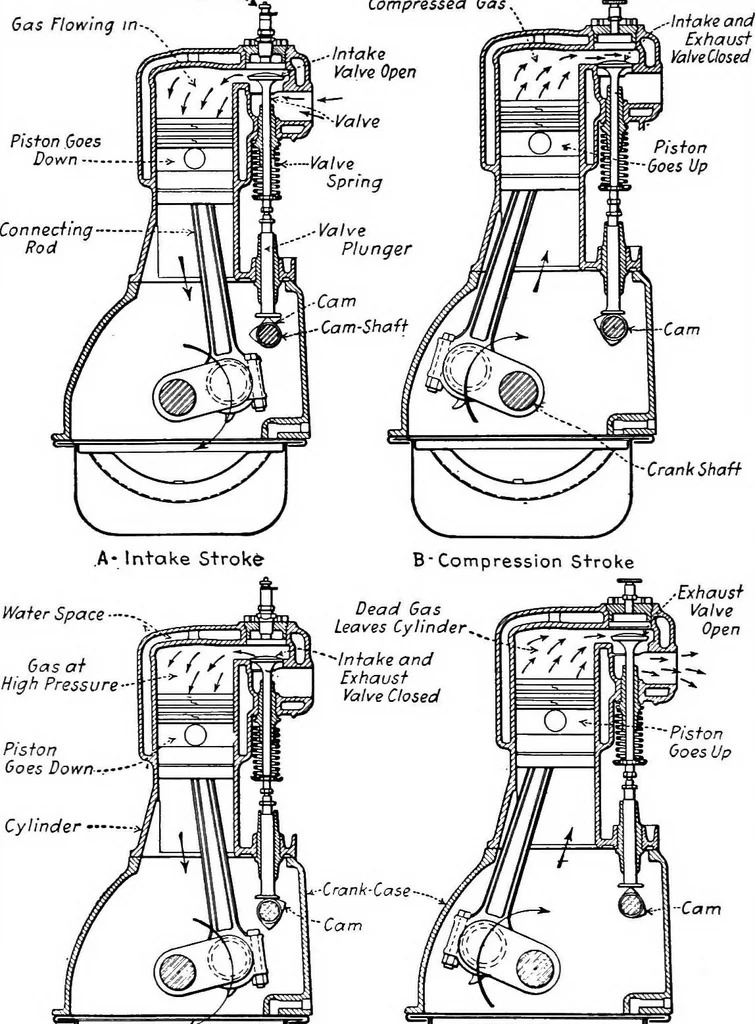

Exploded. 4. Powder Gas Exhausted. Fig. 6.—Outlining Sepond Two Strokes of Piston in Four-Cycle Engine. return upward movement of the piston as shown at Fig.6, D during which time the exhaust valve is opened topermit the burnt gases to leave the cylinder. As soonas the piston reaches the top of its… … PistonGoes Up ^^ C- Power. Stroke ^^ D- Exhaust Stroke Fig. 7.—Sectional View of L Head Gasoline Engine Cylinder ShowingPiston Movements During Four-Stroke Cycle. How Two-Stroke Cycle Engine Works 41 again travels on its down stroke the inlet valve opens andadmits a charge of fresh gas and the…
