Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 466

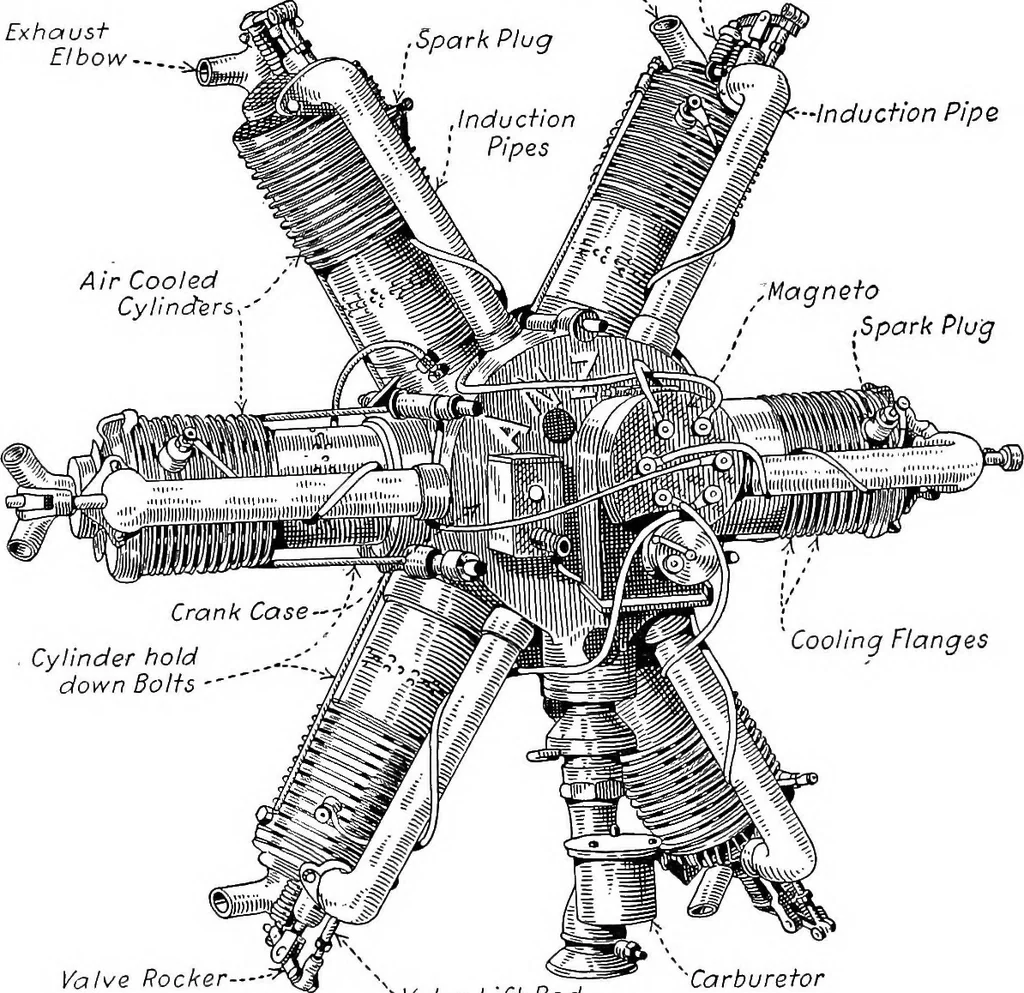

tons of the Anzani engines areof cast iron, the cylinders being provided with a liberalnumber of cooling flanges which are cast integrally. Aseries of auxiliary exhaust ports is drilled near the base; Anzani Engine Construction 465 of each cylinder so that a portion of the exhaust gaseswill flow… … Valve Rocker—■■ -•Valve Lift Rod Carburetor A.6.HAG5TROM N.Y. Fig. 194.—Anzani Fixed Crank-Case Engine of the Six-Cylinder FormUtilizes Air Cooling Successfully. vents warping of these members. Another distinctivefeature of this engine design is the method of attachingthe Zenith carburetor to an…
Airplanes
