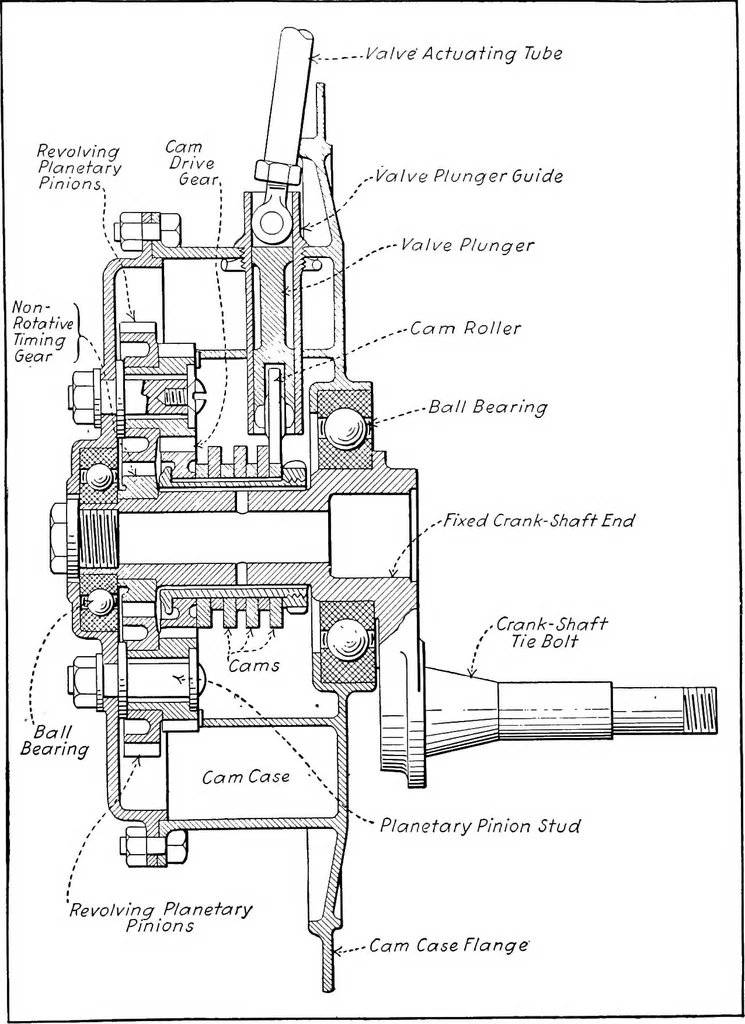

he fixed platform carrying the stationary crank-shaft,being driven by the pinion on the revolving crank cham-ber. The magnetos are geared up in the proportion of4 to 7. Mounted on the end plate back of the drivingpinion are the two high-tension distributor plates, eachone with seven brass segments… … Fig. 204.—Cam and Cam-Gear Case of the Gnome Seven-CylinderRevolving Engine. 482 Aviation Engines A good many people doubtless wonder why rotary en-gines are usually provided with an odd number of cylin-ders in preference to an even number. It is a matter ofeven torque, as can easily be understood…
