Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 480

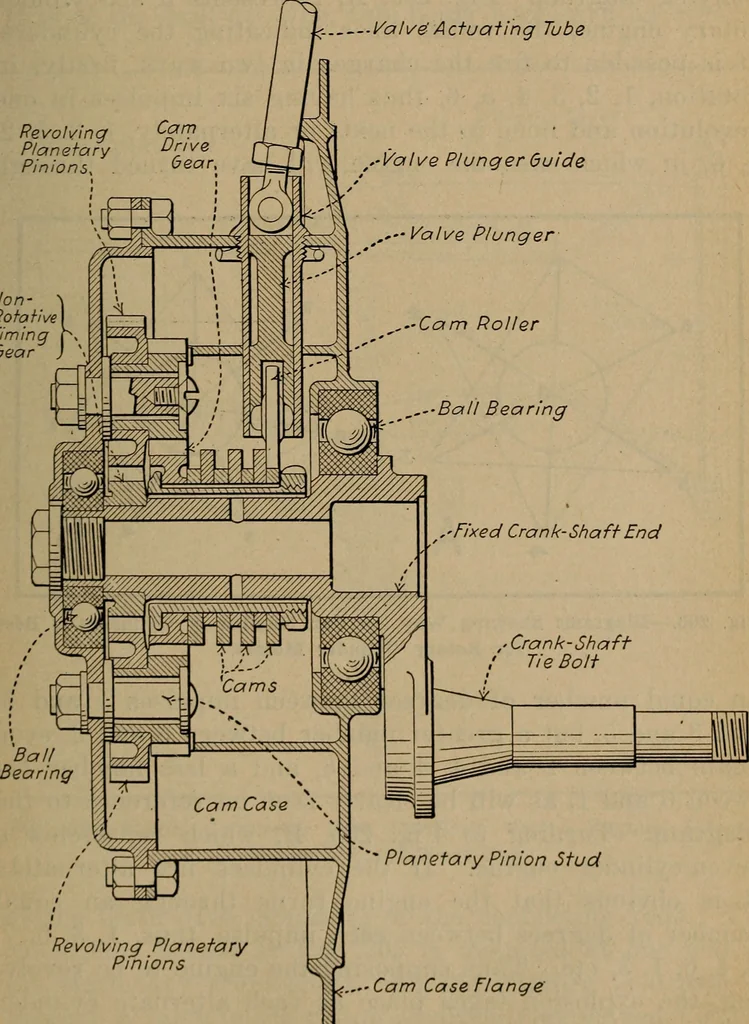

ared up in the proportion of4 to 7. Mounted on the end plate back of the drivingpinionare the two high-tension distributor plates, eachone with seven brass segments let into it and connection Gnome Engine Details 481 made to the plugs by means of plain brass wire. Thewire passes through a hole in… … Revolving PlanetaryPinions Cam Case Flange Fig. 204.—Cam and Cam-Gear Case of the Gnome Seven-CylinderRevolving Engine. m 482 Aviation Engines A good many people doubtless wonder why rotary en-gines are usually provided with an odd number of cylin-ders in preference to an even number. It is a…
