Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 484

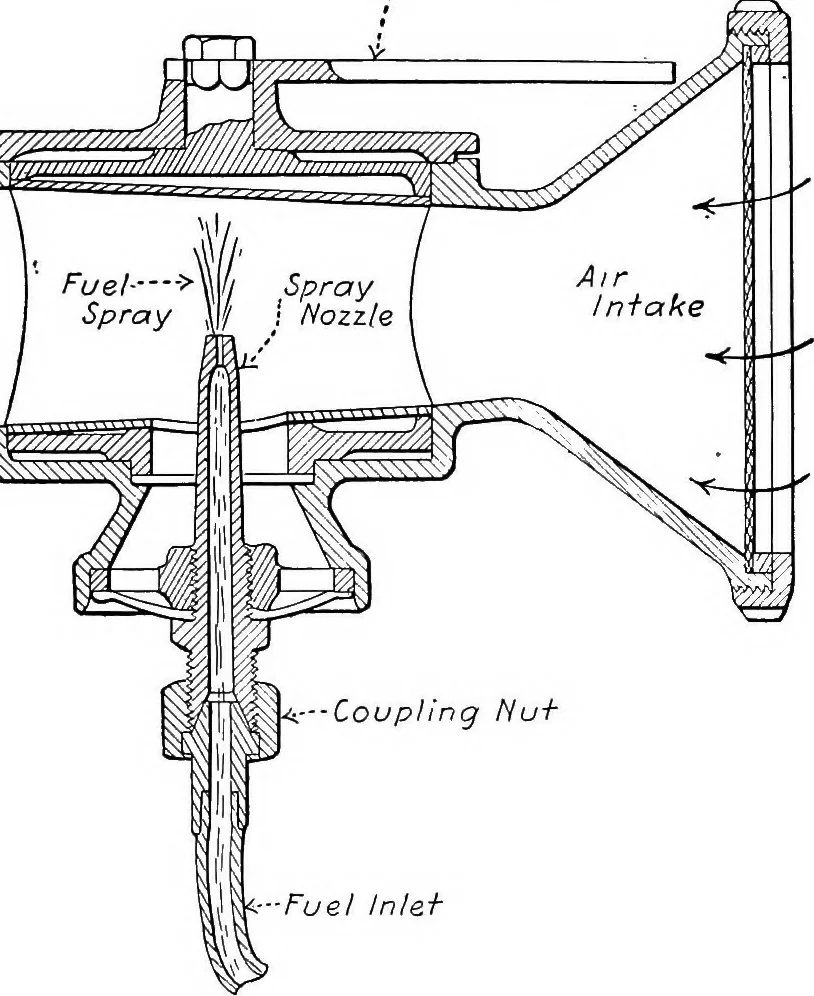

Coup Iin q !Nut … Fig. 206.—Simple Carburetor Used On Early Gnome Engines Attachedto Fixed Crank-Shaft End. of the distinctive mounting of the connecting rods. Thecarburetor shown at Fig. 206 is mounted at one end ofthe stationary crank-shaft, and the mixture is drawn inthrough a valve in the piston as already…
Airplanes
