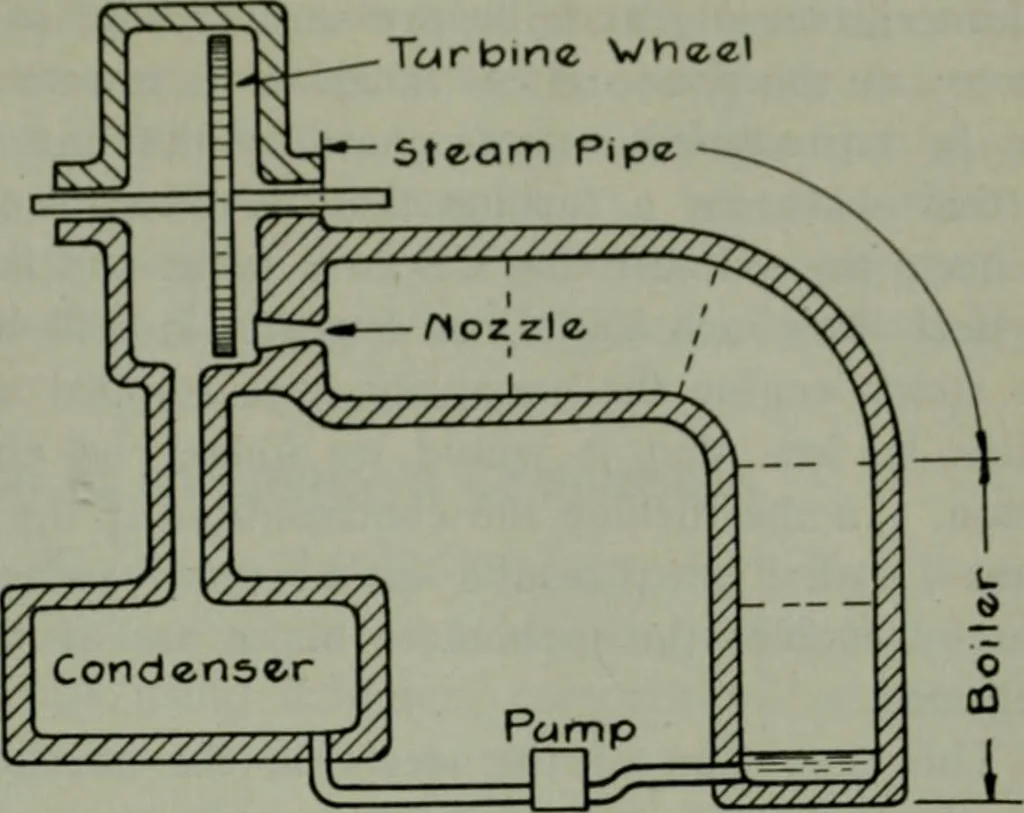

is subjected in being forced back to the boiler. Since a steam engine indicator can be applied to a reciprocatingengine and can graphically record the changes taking place withinthe cylinder, it is not so difficult to see the relation between the actualpressure-volume changes in the cylinder and… … Fig. 4. turbine, yet the vol-ume and pressure changes which apound of water orsteam undergoes inthe turbine are ex-actly the same as inthe engine. This wewill attempt to ex-plain and in doing so,we will use an imag-i n a r y arrangementsimilar to that of Fig.3 but adapted for asteam turbine. This…
