Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 521

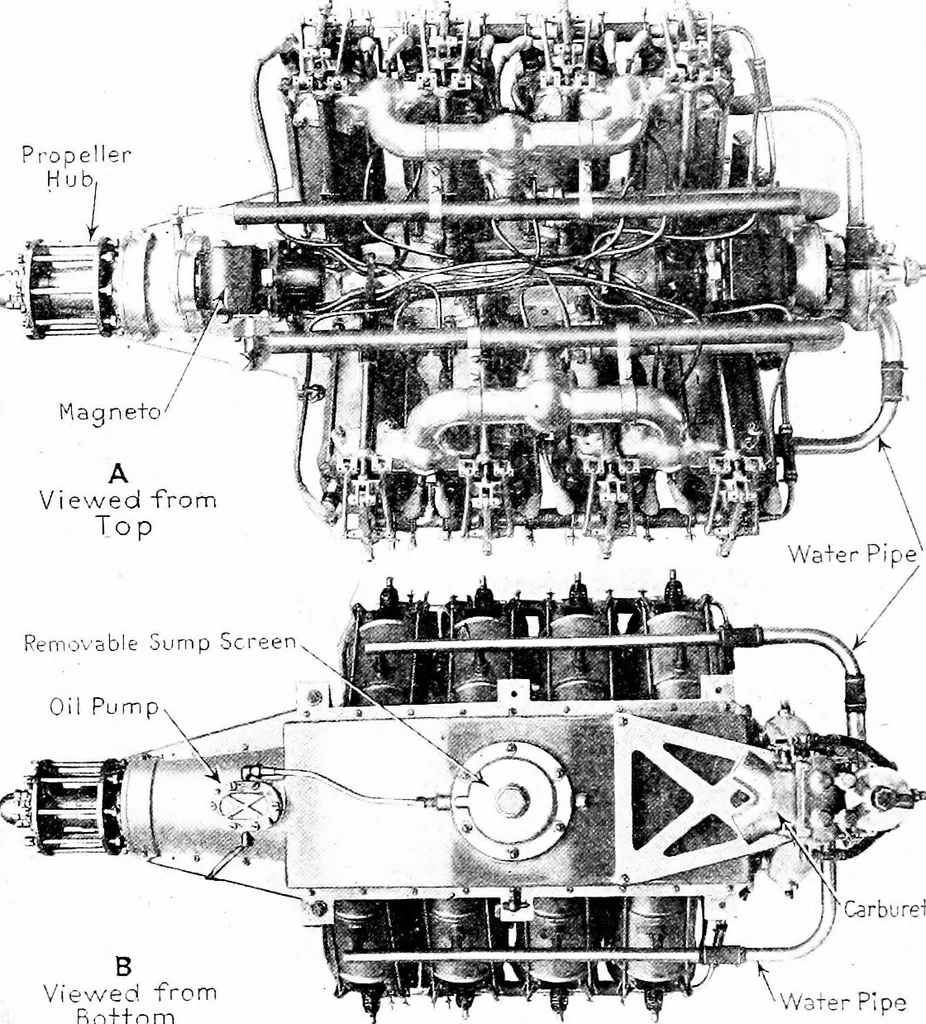

which are brazed on to thecylinder barrel itself. Both these motors use side byside connecting rods and fully forced lubrication. Thecam-shafts act as a gallery from which the oil is dis-tributed to the cam-shaft bearings, the main crank-shaft 520 Aviation Engines bearings, and the gearing. Here… … >Carburetor Viewed fromBottom Water Pipe Fig. 232.—Top and Bottom Views of the Curtiss OXX5 100 Horse-Power Aviation Engine. to G.000 feet, the motors are sent out with an aluminumliner, bolted between the cylinder and the crank-case inorder to give a compression ratio which does not resultin…
Airplanes
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
