Wright-Martin Aircraft Corporation, New Brunswick, N.J · New Brunswick, N.J., Wright-Martin Aircraft Corporation · leaf 37

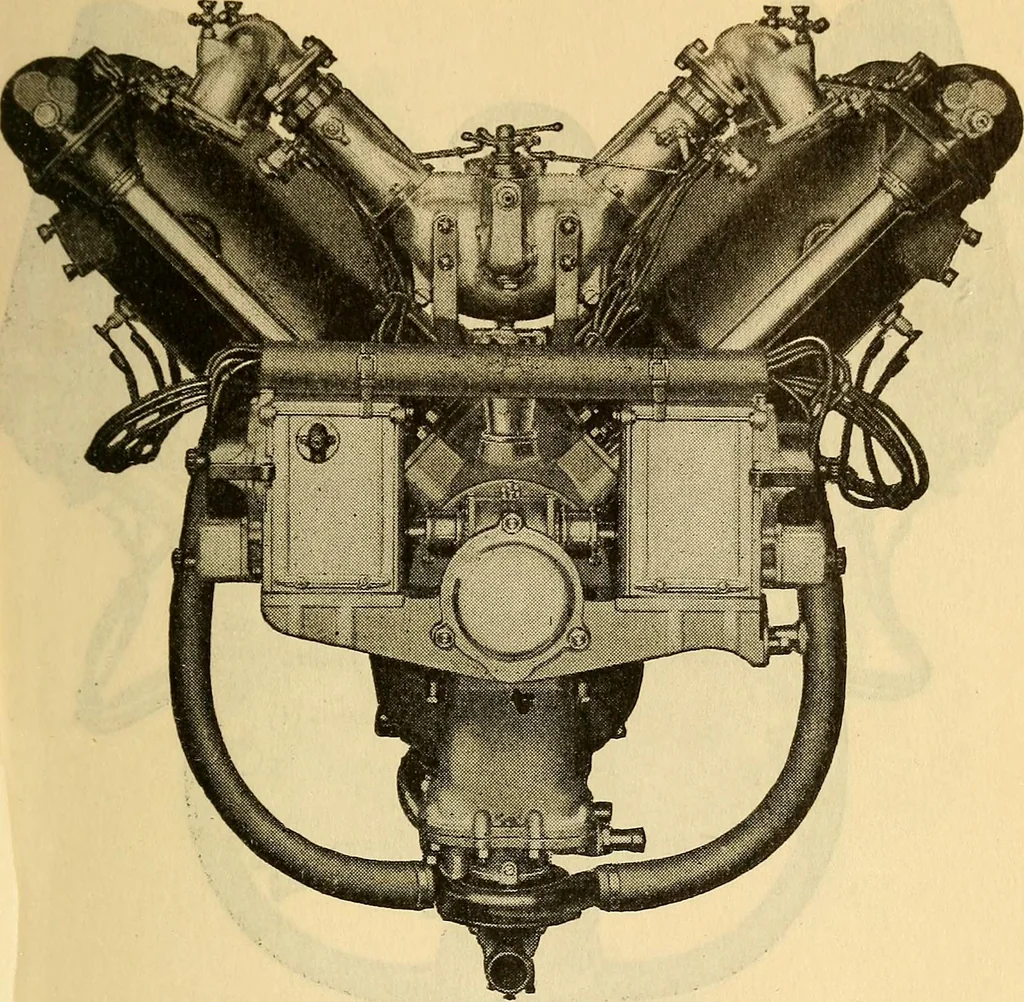

ed and babbitt lined, and one annular ball mainbearing at the rear (magneto) end. It is provided witha taper having a key for the propeller hub. The thrust for either a tractor or pusher propellerscrew is provided for by a double row ball-thrust bearinglocated in the front of the crankcase.… … Plate 5Rear view of engine Magneto Support and Drive. The magneto support is an aluminum casting boltedon the rear end of the crankcases. A small shaft, witha spiral gear, driven from the end of the crankshaft ismounted in the center of the magneto support. Thisshaft drives, by means of the spiral…
Airplanes
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Electric engineering.] (1902)](https://img.insideoutlibrary.com/img/200/ia-electricengineer04inte-409-177.webp)
