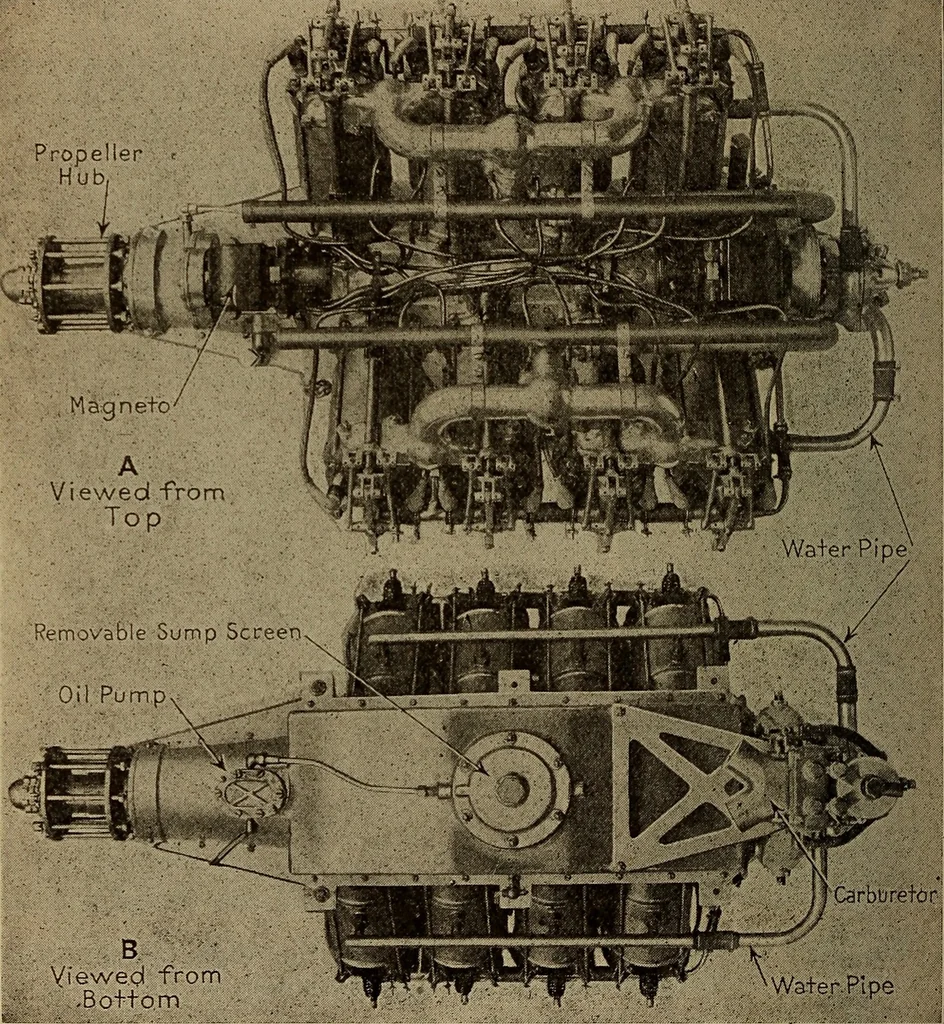

f which are brazed on to thecylinder barrel itself. Both these motors use side byside connecting rods and fully forced lubrication. Thecam-shafts act as a gallery from which the oil is dis-tributed to the cam-shaft bearings, the main crank-shaft 520 Aviation Engines hearings, and the gearing. Here… … Viewedfrom ,-,-Bo+to.m Tig. 232.—Top and Bottom Views of the Curtiss OXX5 100 Horse-Power Aviation Engine. to 6,000 feet, the motors are sent out with an aluminumliner, bolted between the cylinder and the crank-case inorder to give a compression ratio which does not resultin pre-ignition at a low…
