Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 527

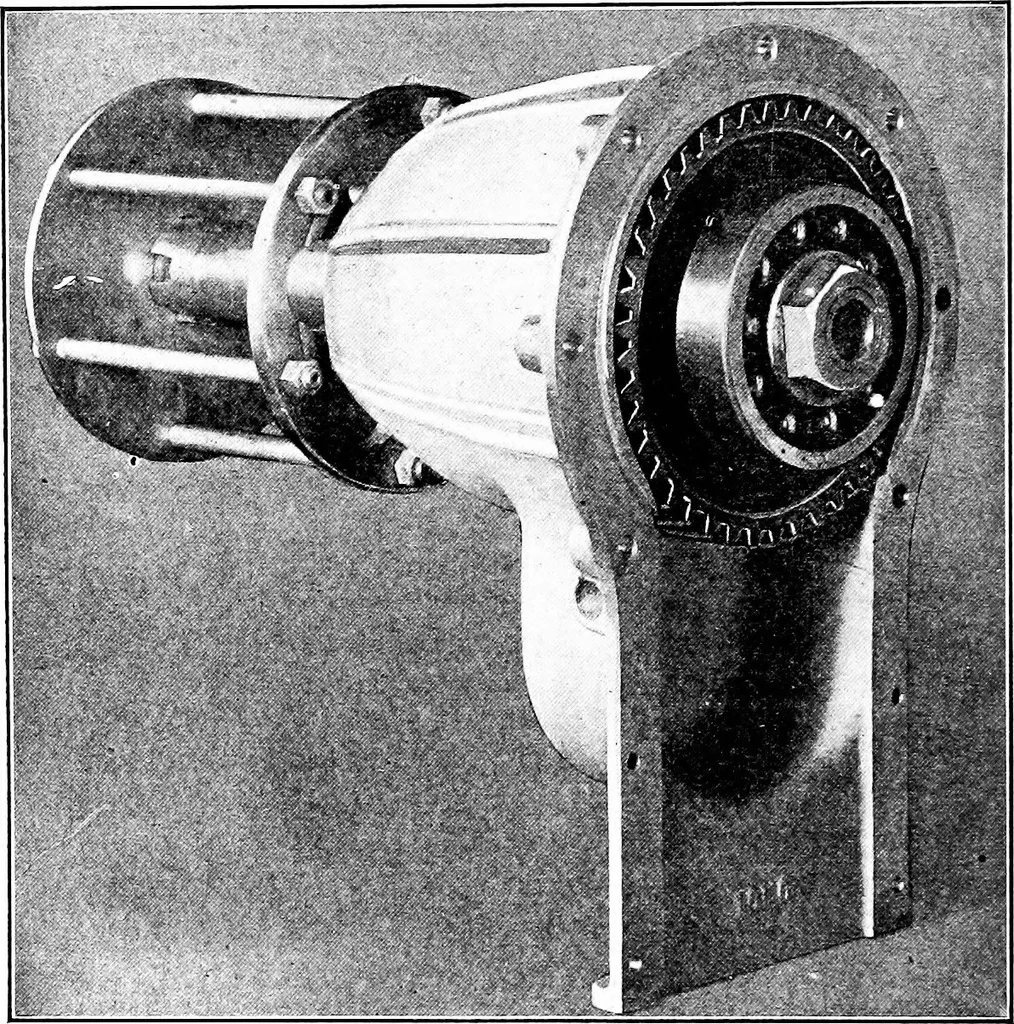

hout gear reduction, 436 pounds. This motor hasbeen produced as a power plant weighing 3.5 pounds perhorse-power, yet nothing has been sacrificed in rigidityand strength. At its normal speed it develops 1 horse- 526 Aviation Engines power for every 3.5 cubic inches piston displacement.Cylinders are… … Fig. 235.—The Reduction Gear-Case of Thomas-Morse 150 Horse-PowerAviation Motor, Showing Ball Bearing and Propeller Drive Shaft Gear. tungsten steel, li:>ic inlets and 2 exhausts, two of eachto each cylinder. Arranged horizontally in the head,allowing very thorough water-jacketing. Inlet valves…
