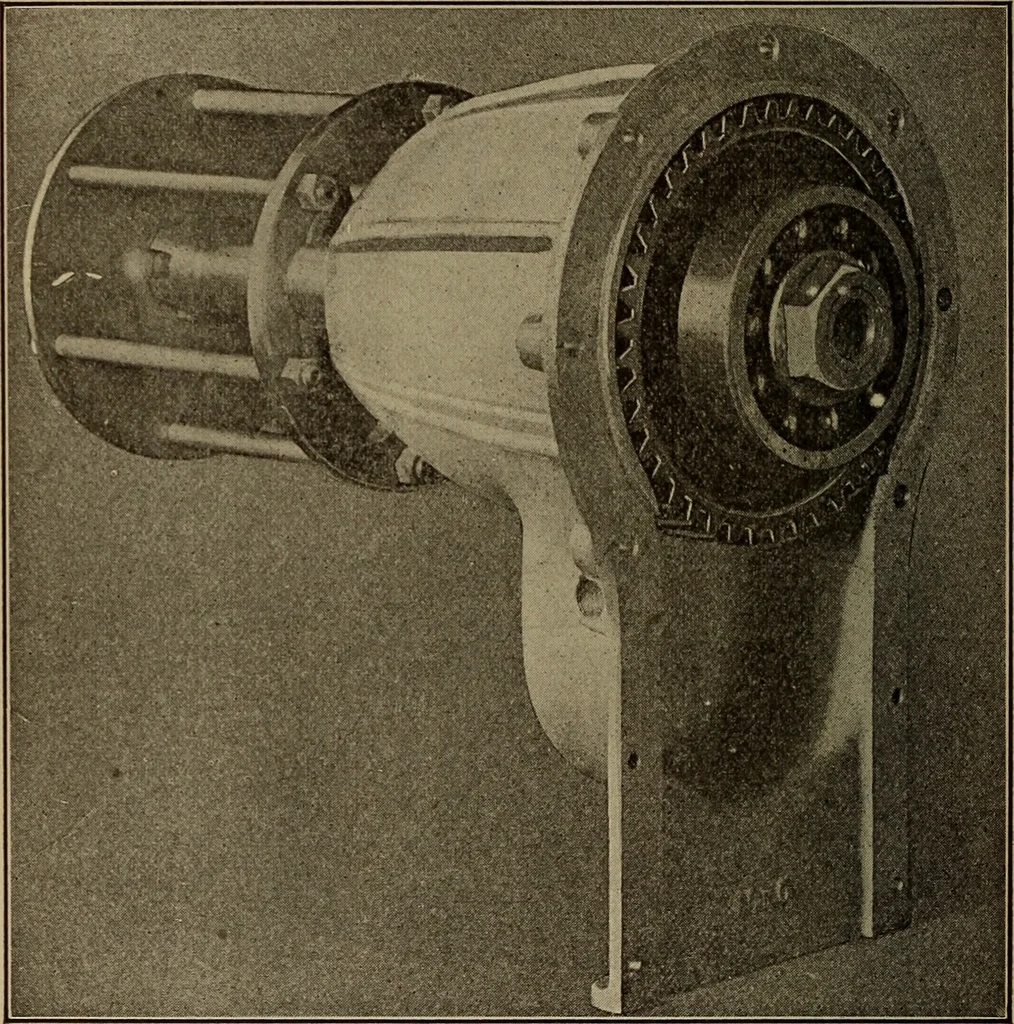

hout gear reduction, 436 pounds. This motor hasbeen produced as a power plant weighing 3.5 pounds perhorse-power, yet nothing has been sacrificed in rigidityand strength. At its normal speed it develops 1 horse- 526 Aviation Engines power for every 3.5 cubic inches piston displacement.Cylinders are… … Fig. 235.—The Reduction Gear-Case of Thomas-Morse 150 Horse-PowerAviation Motor, Showing Ball Bearing and Propeller Drive Shaft Gear. tungsten steel, l1%e// inlets and 2 exhausts, two of eachto each cylinder. Arranged horizontally in the head,allowing very thorough water-jacketing. Inlet valves…
