Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 78

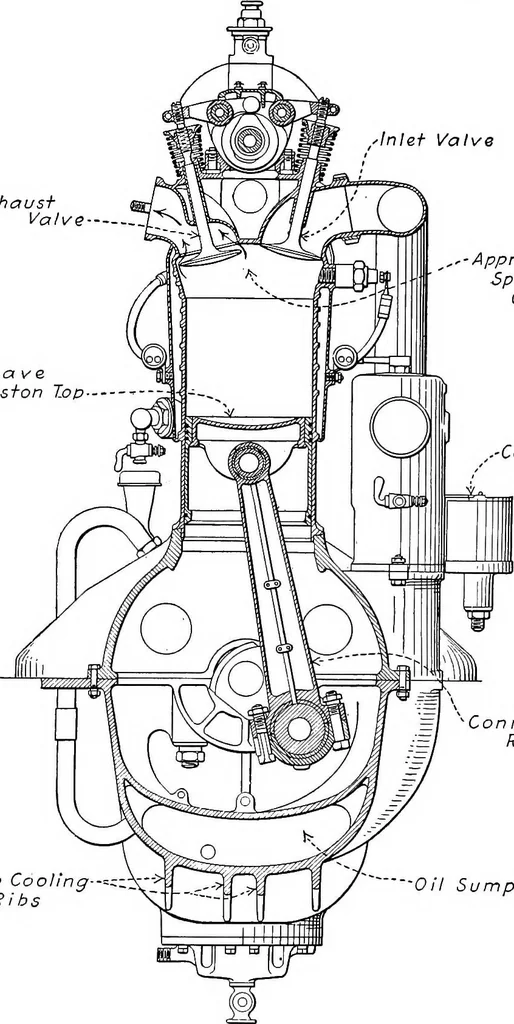

explosive combustion, it may beclearly seen that its concavity increases its surface areaand its capacity for absorbing heat, for which there isno provision for cooling the piston, save its contact withthe walls of the cylinder and the slight air cooling of itsback by its reciprocal motion. For… … --ApproximatelySphericalChamber .-Carburetor ^ConnectingRod Sump Cdo//n^--=c;V■Ribs Oil Sump ig. 20.—Mercedes Aviation Engine Cylinder Section Showing ApproximatelySpherical Combustion Chamber and Concave Piston Top. 78 Aviation Engines piston-head is the latest and best practice in airplaneengine…
