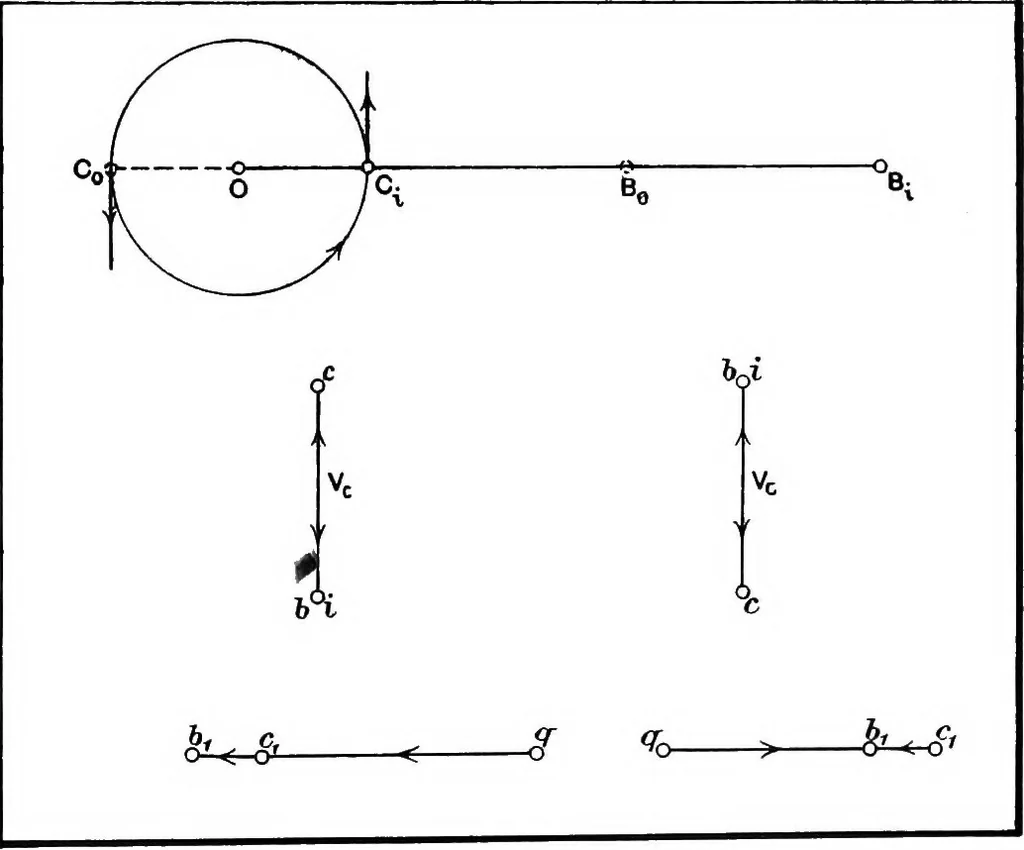

CELERATIONS 117 right angles to B C, and therefore to c^ 621 so that by drawing62&i perpendicular to c^b^ to intersect qb^ in. b^, the latterpoint becomes fixed, and the length of qb^ measured uponthe acceleration scale will give us the required accelerationA], of the point B. In this way, by… … Fig. 66.—Acceleration in In and Out Positions. was pubUshed by Prof. R. H. Smith, who called them ve-locity and acceleration images ; it was appKed to a numberof mechanisms by Prof. S. Dunkerley in his book Mechanism(Longmans). Acceleration at Ends of Stroke.—As we shall see later,the maximum…
