Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 136

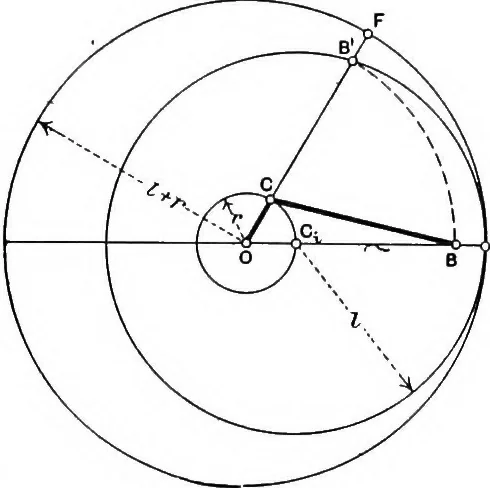

the Point B.—The follow-ing graphical construction due to Zeuner is very useful inproblems on the crank and connecting-rod mechanism, be-cause it saves constant striking off with the compasses from agiven crank-pin position to obtain the corresponding position of the slide: First describe the crank… … 126 GRAPHIC DYNAMiaS crank-pin, say C, and join OC and produce it, meeting theother circles in B and F respectively; then FB is the dis-placement of the point B from its in position Bt for thegiven position C of the crank-pin. If the actual position ofB is required, it can be swung down by means of…
Mechanics, Applied · Dynamics · Graphic methods
