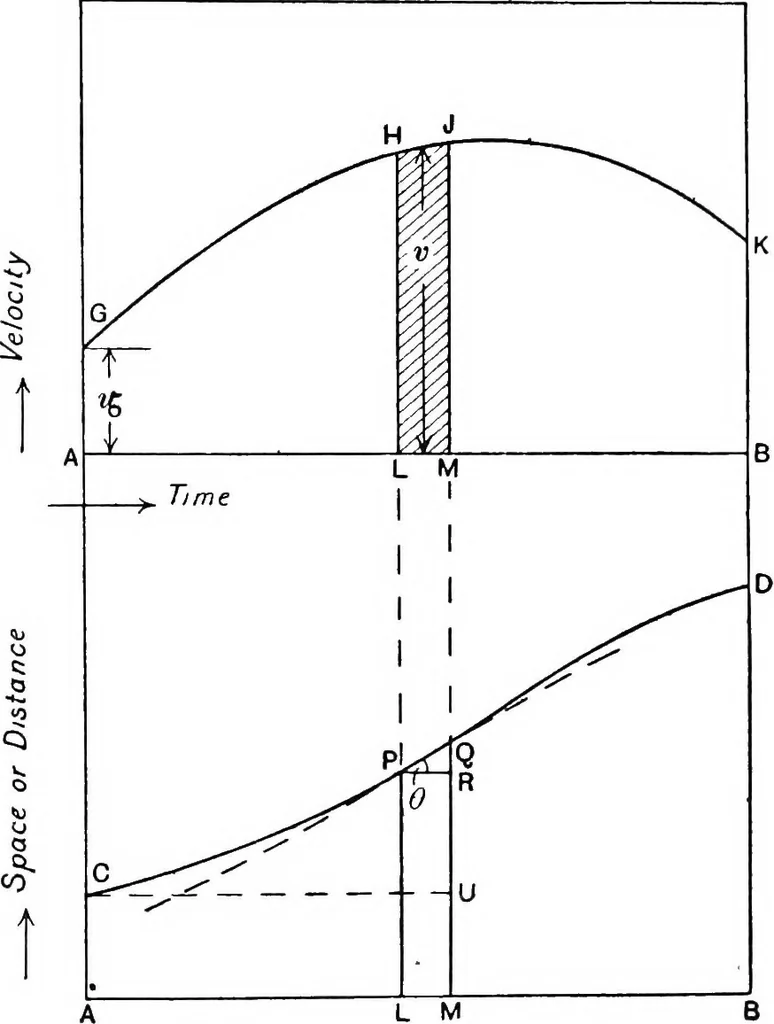

ort time L M is equal to the slope of the tangent tothe space curve at the corresponding point. Since L M is sovery short, the slope of this tangent is given by tan^-p^-j-j^, QR SPACE, VELOCITY, AND ACCELERATION 21 .. QR = LMxt = area of shaded strip of the velocitycurve. But Q R is the increase in… … Time Fig. 12.—Velocity and Space Curves. . QXJ = total increase in space from the beginning= area of velocity curve from A to M, i.e. area AG JM. Butthis is exactly the relation which we have explained betweena slope curve and its primitive curve. Therefore the. sfoce curve is the sum curve of the…
