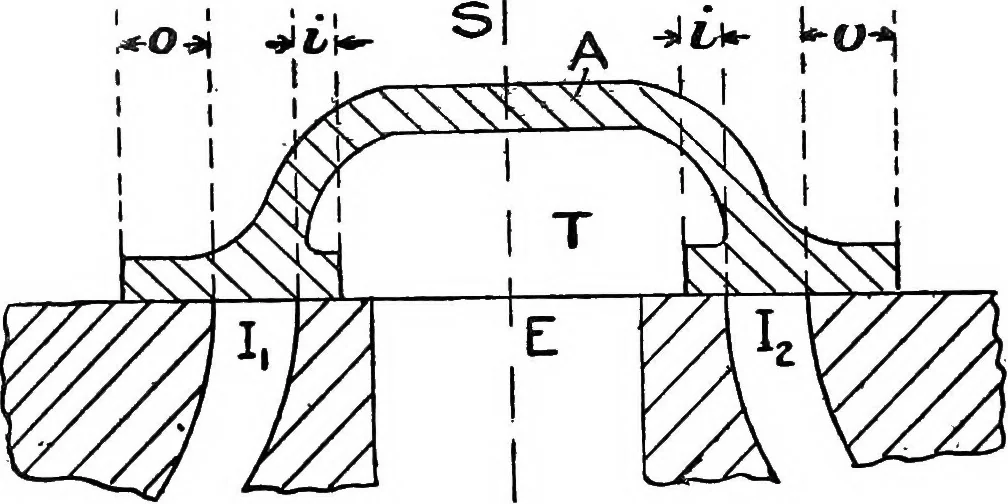

ort Ij, whichconnects with the left-hand end of the cylinder, and thusopen this port to the steam in the space S. The port Ig,connecting with the other end of the cylinder, will also bebrought into communication with the exhaust port E bymeans of the gap T. Movement in the opposite directionwill… … Fig. 34.—Simple Slide Valve. The quantity o is called the outside lap and gives thedistance that the valve must move to the right from itscentral position before the inlet port Ij begins to open tothe steam, and the quantity i, called the inside lap, representsthe distance that the valve must move…
