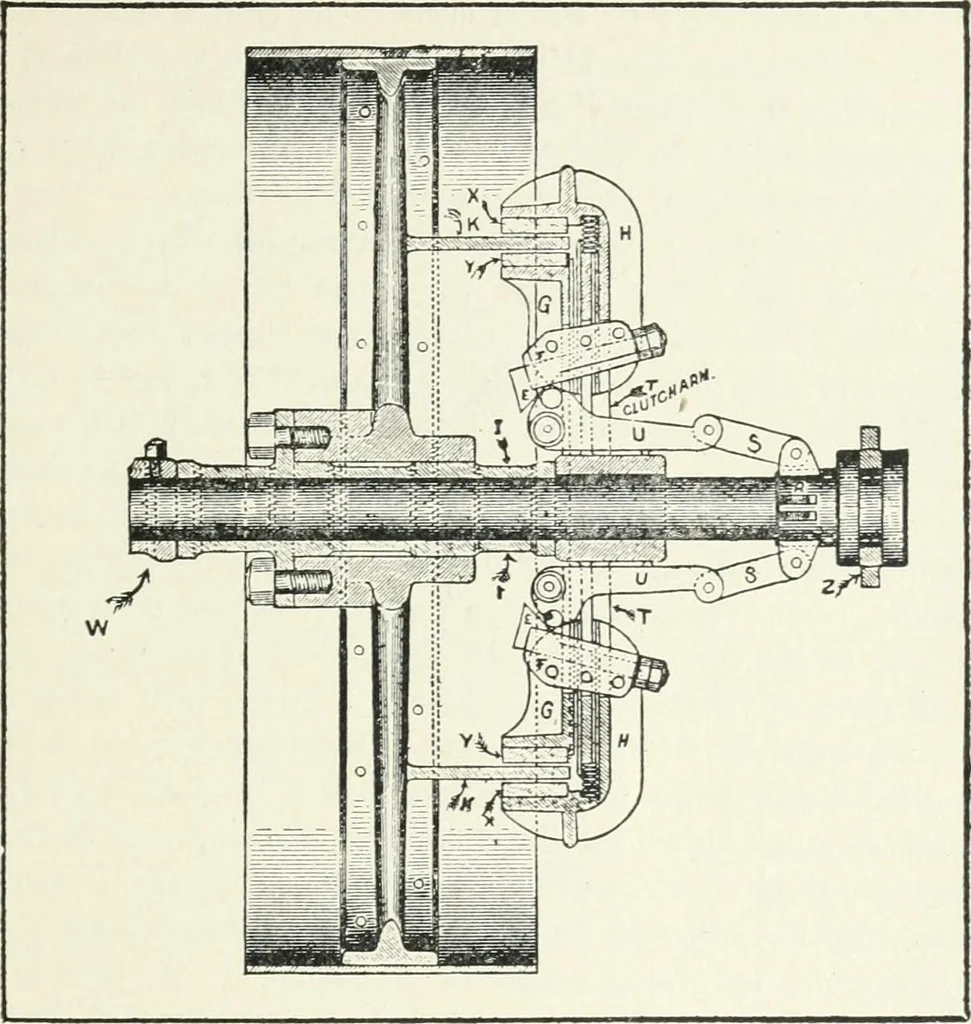

rom one shaft to another is shown at Fig. 95,which illustrates all the important parts of the mechan-ism. The clutch ring K is about half the diameter ofthe pulley and is attached to the arms or spokes bycasting integral in some cases and by making it a separ-ate bolted member in others. The inner… … Fig. 95.—Sectional View of Simple Clutch, Showing Principal Parts. of connection with friction members Q and H and isoperated by means of a inclined cam member, which islifted by a roller or contact member carried at the endof the bell-crank lever U. As will be evident the frictionmembers Q act…
