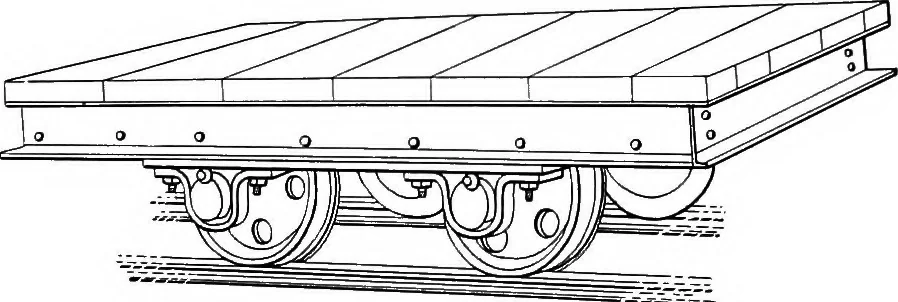

he wheels usually have platformsfrom 6 in. wider to 8 in. narrower than the track gage,while cars with bearings outside of the wheels usually haveplatforms from 1 ft. to 2 ft. wider than the track gage, asshown in the preceding table. Journal boxes usually are rigidly attached to the framebut if… … Fig. I—Four-Wheel Platform Car furnished, especially for heavy service. Wheels for thesmaller cars are usually from 12 in. to 16 in. in diameter,for the larger cars from 16 in. to 20 in. The wheels areusually pressed on the axle, but where there are manyshort curves in the track one wheel on an…
