Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 219

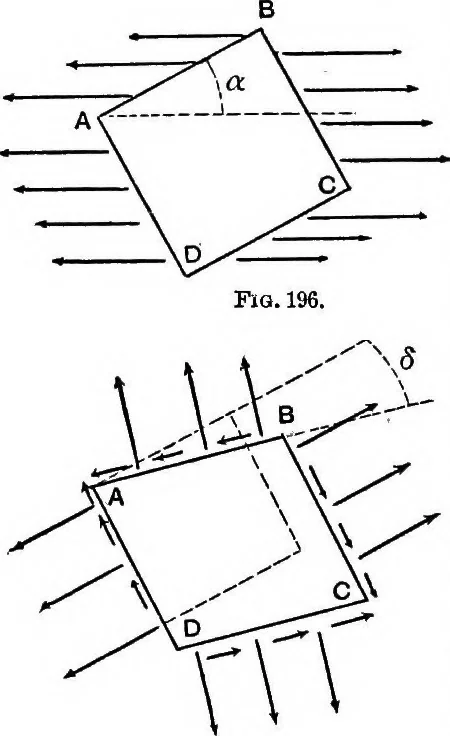

or our present purpose, isconsidered to remain the samewhile the two forces P are acting,as before their action. The re-sultant stress on the face AB hav-ing an intensity p= P-^F, (see eq.2) per unit of transverse sectionof rod, is = ^ (a sin a) a. Henceits component normal to AB is pa^ sin2 a; and… … Fig. 197. ELEMENTARY STRESSES, BTO. 201 a Normal Stress =jp sin^a per unit of area . . (1)and a Shearing Stress =p sin a cos a per unit of area . (2) Unit of area here refers to the oblique plane in ques-tion, while p denotes the normal stress per unit of area ofa transverse section, i.e., when…
Mechanics, Applied · Strength of materials
