Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 28

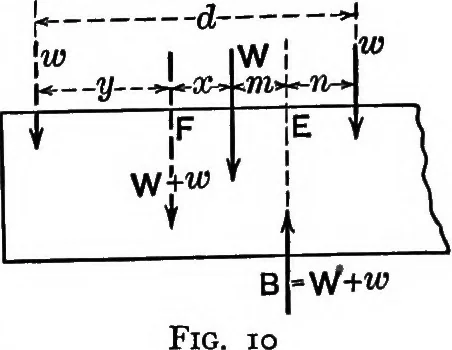

ting torque is measured. Forour purpose the float and attached dynamo may be con-sidered as a free body upon which the upward buoyantforce due to the displaced water balances the downwardweight of the float, the dynamo, the weights used for level-ing the float, and the shifting weight in its first… … a torque is transmitted means that the applied torque is wd pound-feet. That this is so can be demonstrated as follows. Consider the float in equilibrium when no torque is transmitted, as shown in Fig. lo. Here the arrow marked W represents the resultant of all weights except the shifting weight…
Mechanics
