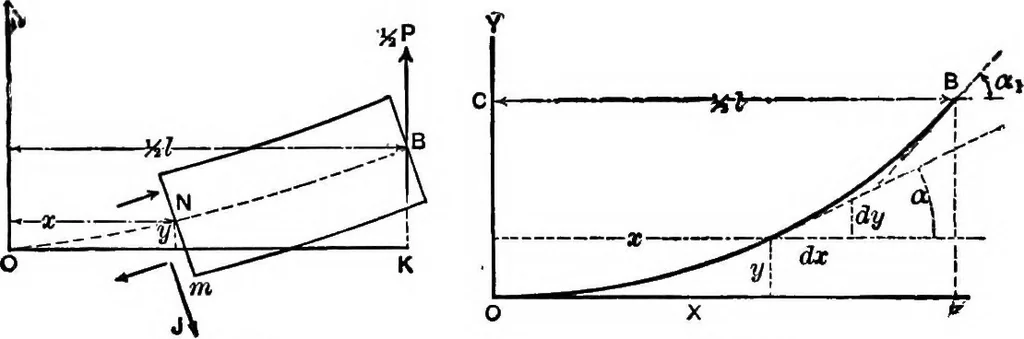

4P- AOB is the neutral line ; requiredthe equation of the portion OB referred to 0 as an origin,aJnd to the tangent line through 0 as the axis of X. Todo this consider as free the portion mB between any sec-tion m on the right of 0 and the near support, in Fig.225 The forces holding this free body… … Fig. 2^5. FlQ. 886. »re the one external force i^P, and the elastic forces act-ing on the exposed surface. The latter consist of J, theshear, and the tensions and compressions represented inthe figure by their equivalent stress-couple. SelectingN, the nsutral axis of m, as an axis of moments (that…
