Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 279

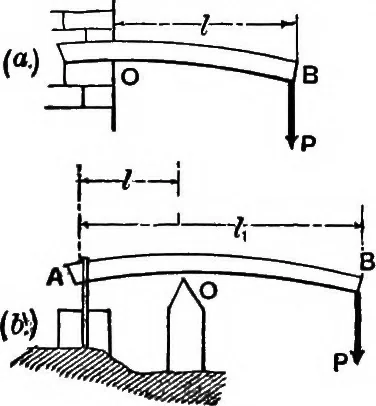

antilevers.—A horizontal beam whose onlysupport consists in one end being built in a wall, as inFig. 229(a), or supported as in Fig.229(6) is sometimes called a canti-lever. Let the student prove that inFig. 229(a) with a single end load P,the deflection of B below the tangentat Ois… … FLEXUKB ELASTIC CURVES. «!= 2EI The greatest deflection of the elastic curve from the rightline joining AB, in Fig. 229(6), is evidently given by theequation for y max. in § 235, by writing, instead of P ofthat equation, the reaction at 0 in Fig. 229(6). This assumesthat the max. deflection occurs…
Mechanics, Applied · Strength of materials
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
