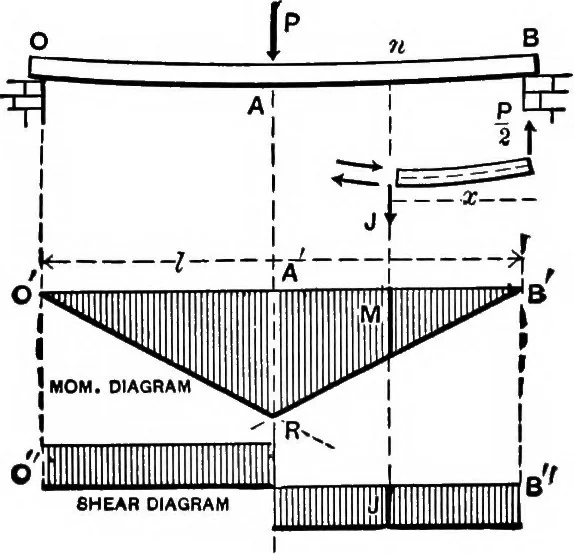

4Px Evidently M is proportional to x, and the ordinates repre-senting it will therefore be limited by the straight line … ^FiQ. 234. ffR, forming a triangle BRA. From symmetry, anothertriangle ORA forms the other half of the moment dia-gram. From inspection, the maximum ilf is seen to be inthe middle where a;= ^Z, and hence {M m&-^.)= M„,= %Pl • (1) Again by putting 2(vert. compons.)=0, for the free bodynB we have…
