Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 379

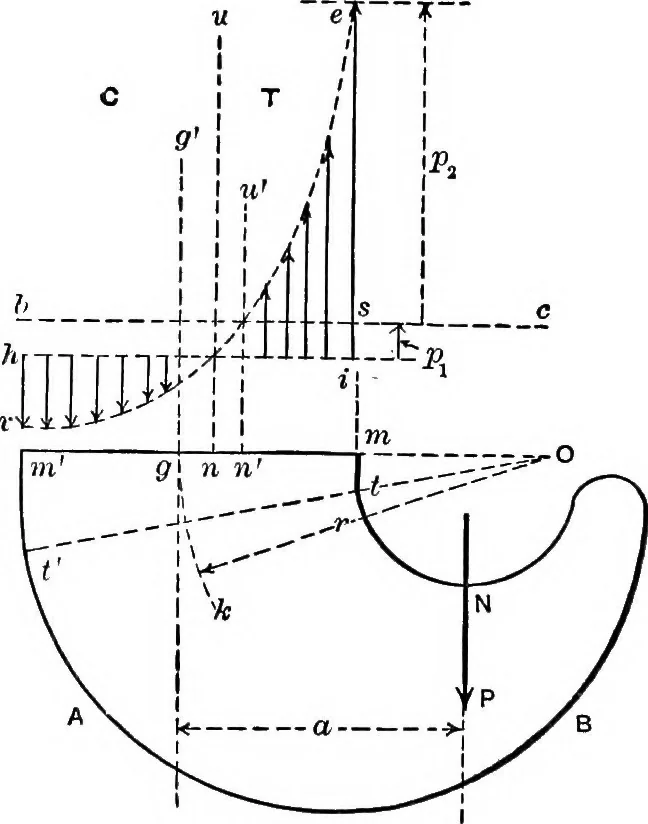

berlengths M-ere equal inlength (as would be thecase for a prismatic beam)the unit-stresses actingwould also be proportionalto the ordinates of astraight line (this is thecase in Fig. 301). But in the present casethese fiber-lengths are vn-equal, so that the unit-stresses in action are (ingeneral)… … Fig. 306. FLBXUKB. COLUMNS AND HOOKS. OBLIQUE FORCES. 359 of the vertical fibers from m to m. Thus, the stress on thefiber mt is p^ = ei (tension); and that on the other extremefiber, (at m) is p^, = hv (compression). If now we compute the average unit-stress p^ = P -^ F andlay it off, = is, upward…
Mechanics, Applied · Strength of materials
