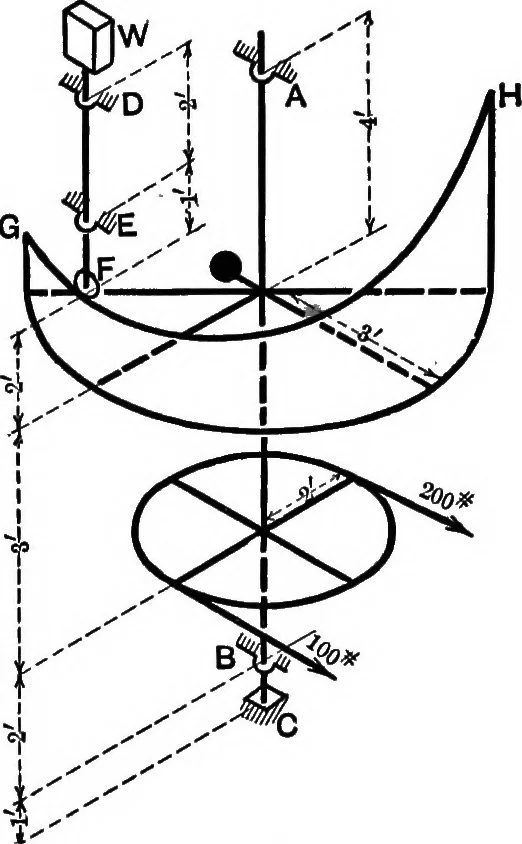

f a square-threaded screw, upon which rolls the wheel F, which isfastened to the rod DE supported by bearings at D and Eand supporting the load W. Assuming the weight of the shaft AB together with thecam and pulley to be 300 pounds, with the center of gravitym the axis AB, and the pitch angle of… … I Fig. 61 Fig. 62 Exercise ho. Fig. 62 shows the plan and elevation ofa shaft supported by two bearings. If the arrows representthe projections of three forces acting upon the shaft, findgraphically the forces acting on the bearings. Construct a profile showing all forces acting upon the shaft.…
