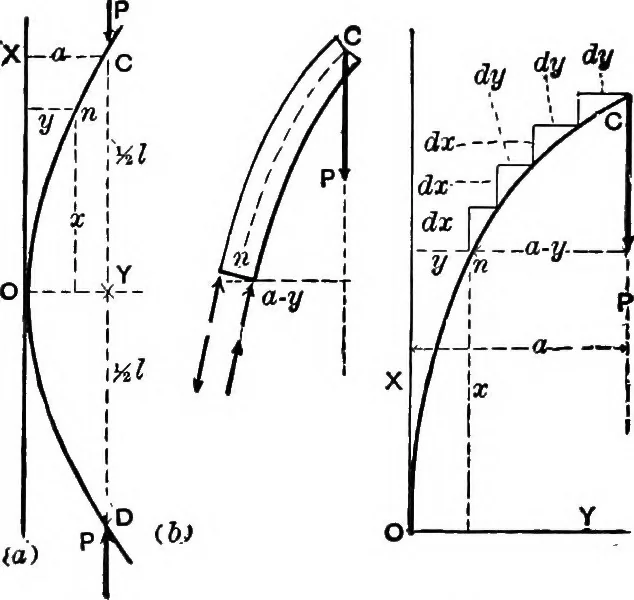

olumn. Fig. 313 (a), assume the middle of the length asan origin, with the axis X tangent to the elastic curve atthat point. The flexure being slight, we may use the formEI(Py-^dx^ for the moment of the stress-couple in any * With round ends, or pin ends, it should be understood that the forceat… … Fig. 313. isection n, remembering that witL. this notation, the axis Xmust be || to the beam, as in the figure (313). Consideringthe free body nG, Fig, 313 (h), we note that the shear iszero, that the uniform thrust =P, and that 2(moma.n)=0gives {a being the deflection at 0) ^^^=p(^y) . . . (1)…
