Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 378

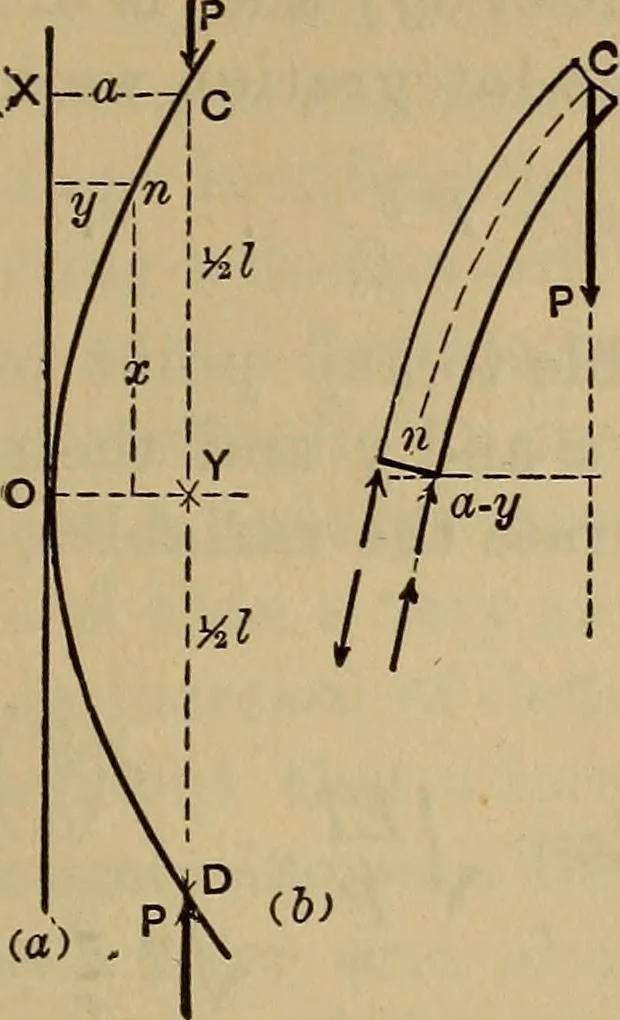

erred to a gravity axis of the sec-tion which is T to the plane of flexure (and this corres-ponds to the force-plane spoken of in previous chap-ters), or plane of the axis of column when bent. 303a. Eulers Formula.—Taking the case of a round-endedcolumn, Fig. 313 (a), assume the middle of the… … dy dy dy dx- —V r-^-p 1^6 dx- H/ dx ~V~ fo~ -a-y. < Js T i _a— —, \x 1 1 1 1 Y Fig. 313. Fig. 314. section n, remembering that with this notation the axis Xmust be || to the beam, as in the figure (313). Consideringthe free body nC, Fig. 313 (b), we note that the shear iszero, that the uniform…
Mechanics, Applied · Engineering · Strength of materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
