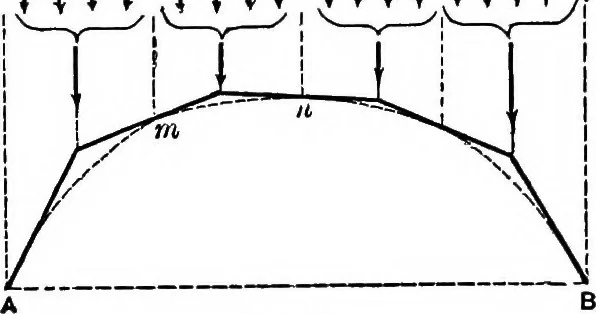

the I distance of the pole from the load-line, and is called the pole-distance]. § 340. Linear Arch as Equilibrium Polygon.—(See § 316.)If the given loads are infinitely small with infinitely smallhorizontal spaces between them, any equilibrium polygonbecomes a linear arch. Graphically we can not… … Fig. 370. the sum of those com»posing one group and isapplied through the cen-tre of gravity of thatgroup, we can draw anequilibrium polygonwhose segments will betangent to the curve ofthe corresponding lineararch, and indicate its posi-tion with sufficient exactness for practical purposes.…
