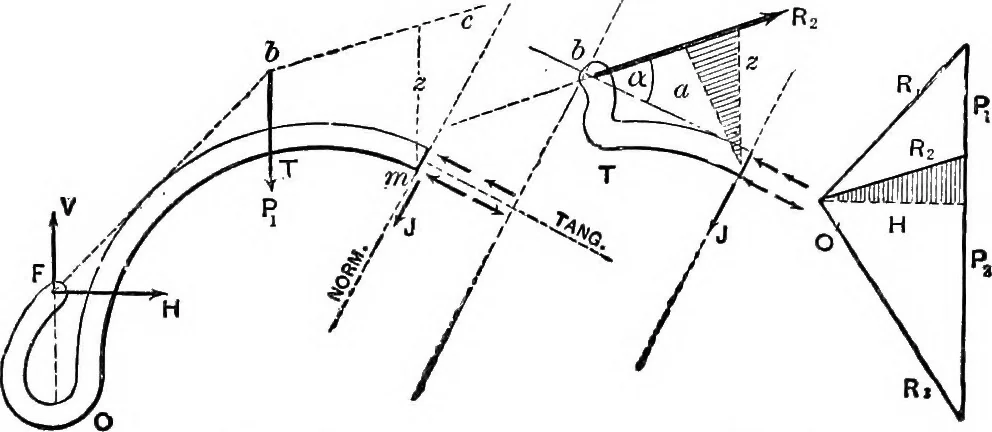

iglit be 200 lbs. to theinch, gay, and that of the space-diagram (on the left) 30 ft.to the inch. The cross section m lies in a portion TK, of the rib, cor-responding to the rod or segment he of the equilibriumpolygon; hence its anti-stress-resultant is a force R^ actingin the line ha, and of an… … F10.40S. FiS. 406. taking the tangent line and the normal at m as axes washould have 2* (tang, comps.) = 0; 2 (norm, comps.) = 0 ;and S (moms, about gravity axis of the section at rri) = 0,and conld thus find the unknowns p^, p^, and J, which ap-pear in the expressions pji^the thrust, ^ the moment…
