Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 481

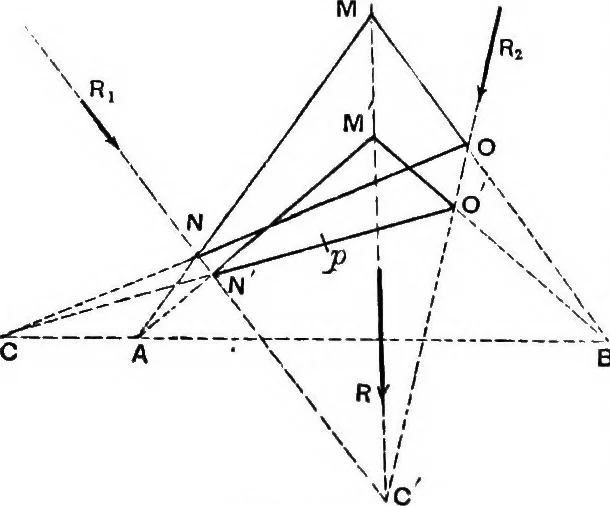

hegiven rib of three hinges upholds a roof, the wind-press-ure on which is to be considered as well as the weights ofthe materials composing the roof-covering, the forces willnot all be vertical. To draw the special equil. polygon in such a case the followingconstruction holds : Re-quired to draw… … Fio. 428a. * See p. 117 of the authors Notes and Examples in Mechanicsdetailed example ot tlie following construction. for » AEOH-EIBS. 461 that of Bi, the resultant of all forces between ,p and B ;also the line of action of R, the resultant of R^ and R^, [see§ 328.] Join any point M io. E with A…
Mechanics, Applied · Strength of materials
