Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 516

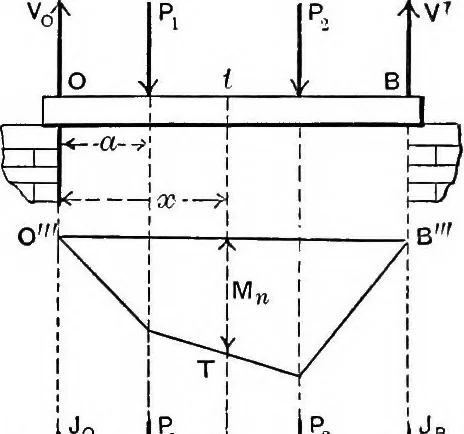

e lower partof Fig. 446) when forming part of a much longer beam sup- FLEXUEE OF BEAMS; GEOMETRICAL TREATMENT. 495 ported ill any manner. If we consider OB, now, as a freebody, we must jiut in, besides the loads P^ and P.,, a shear /„and a stress-couple of moment M^ in section at 0, and J^… … Hence the moment M {=kwm Fig. 446) of any section of OBis made up of a constantpart Mq, a part proportionalto x, and a third part equalto the normal moment ofthat section. Therefore, if,in the moment-diagram0BBwO for OB we join0 and B by a straightline, and also draw a hori-zontal through 0, the…
Mechanics, Applied · Strength of materials
