A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)
Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 131

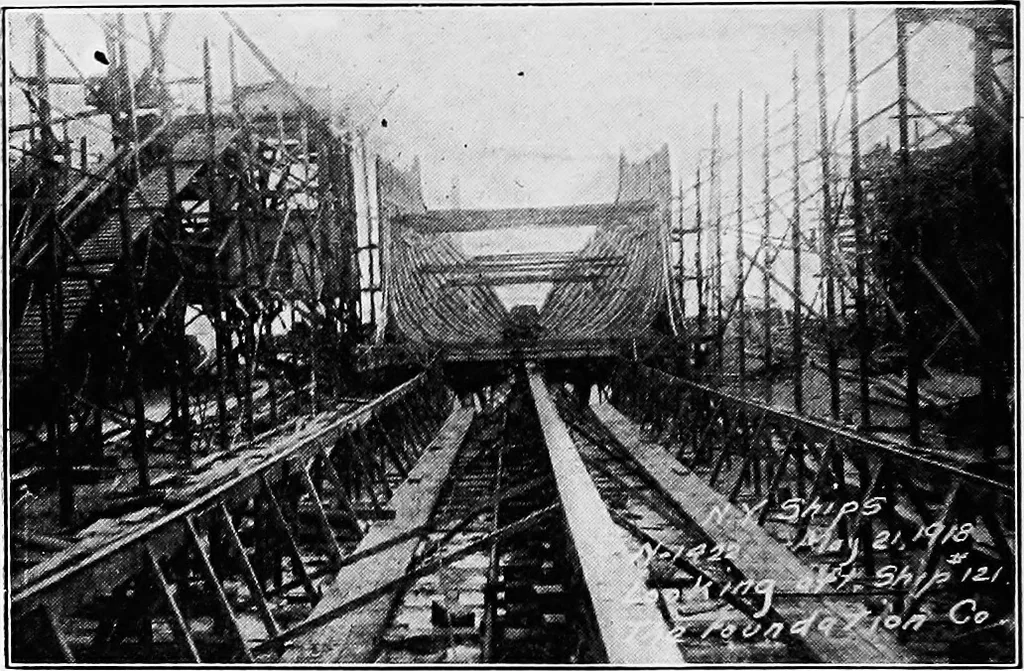

e theship was on them, as shown in Figure 76. CANT FRAMES The cant frames are the half frames at the foreand aft of a ship. It is usual to dispose the trans- 127 128 COURSE IN WOODEN BOAT AND SHIP BUILDING verse framing of a ship entirely in planes per-pendicular to the trace of the load water… … Flgure 73.—The Frames Are Run on Two Tracks, One on Either Sideof the Ways. tical question whether it would not be better atsuch parts to dispose the frames in planes Avhichare more nearly normal to the general surface ofthe ship, and which need not be perpendicular toeither of the three planes of…
Shipbuilding
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
