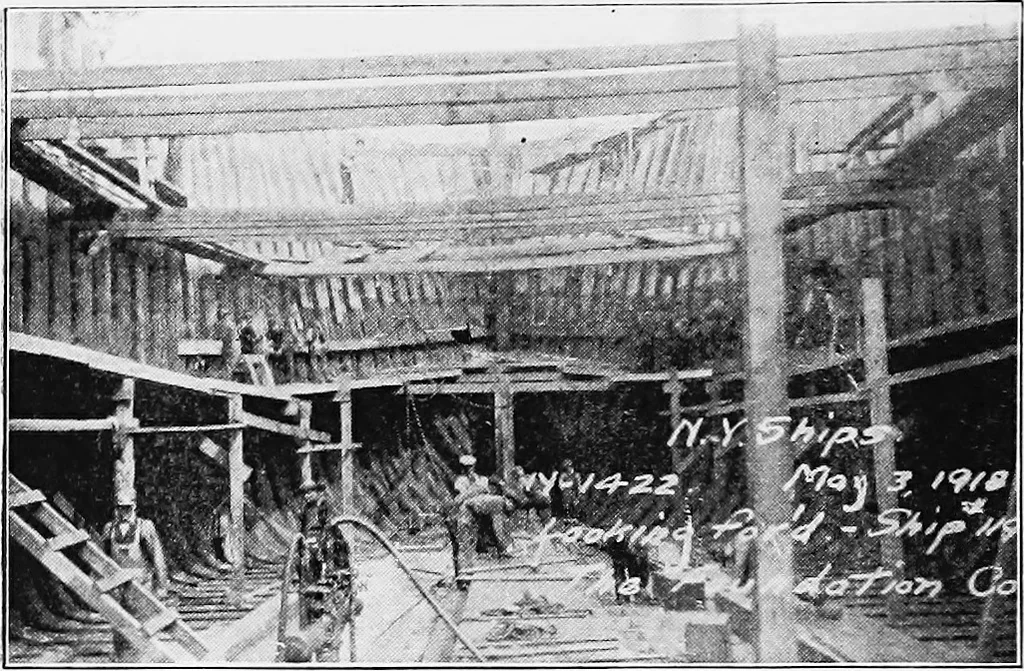

Figure 77.—These Ways Were Lowered While the Ship Was in Frame. 132 COURSE IN WOODEN BOAT AND SHIP BUILDING is performed dt one time. Figures 80 and 81 showthe heads of the same frames. Keelsons.—The keelson timbers are eight innumber, as shown on the midship section, Figure47. These are put in in… … Pigure 78.—Cant Frames Looking Forward, Showing Heels oj Timbers. feet long, connected Avith 7-foot scarfs, care beingtaken to get the best shift of scarfs possible. Figures 82 and 83 show the keelsons being in-stalled. At the lower left-hand corner of Figure83 an opening is seen in the frame work.…
