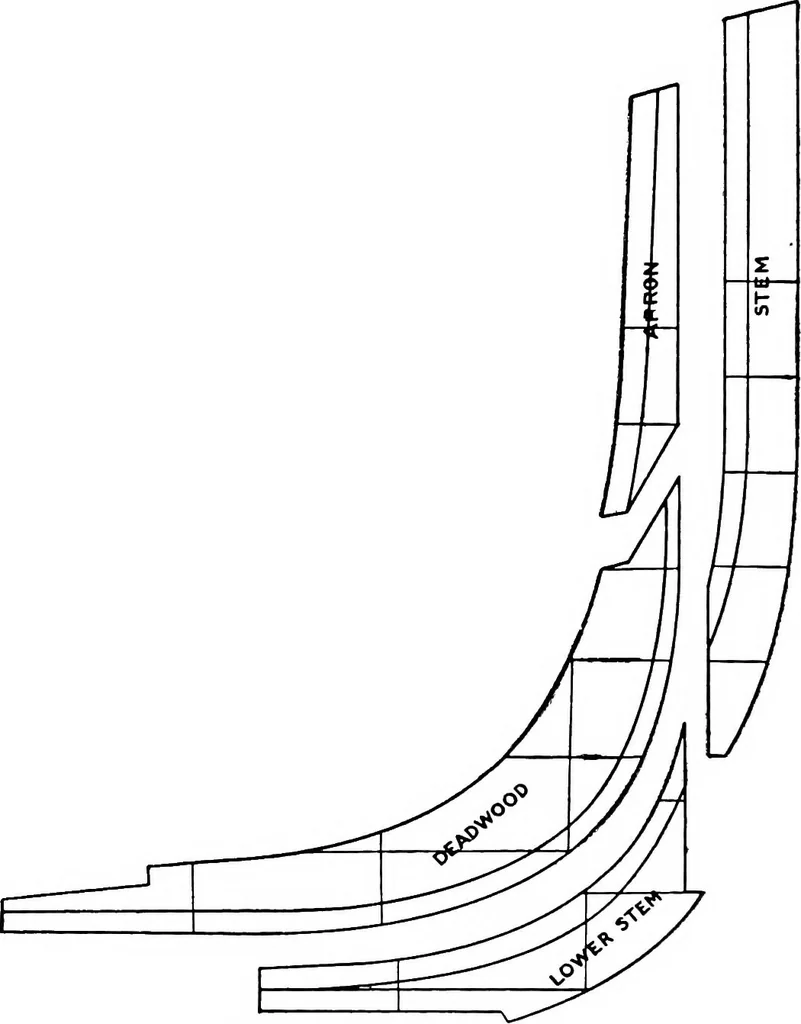

. Figure 8, on which all construction linesare transferred from the mould loft floor. Thesemoulds are needed in locating bearding and rabbetlines and locating various points such as waterlines, etc., used in setting up the timbers and fair-ing the structure. Accuracy in making the mouldsis very… … Figure 7.—Moulds for Stem. STEM AND STERN CONSTKDCTION 31 picking up the lines is shown in Figures 9 and 10.On the floor is shown the full size layout of thestem and stern construction shown in Figures 5and 6.Place a series of tacks with the heads resting
