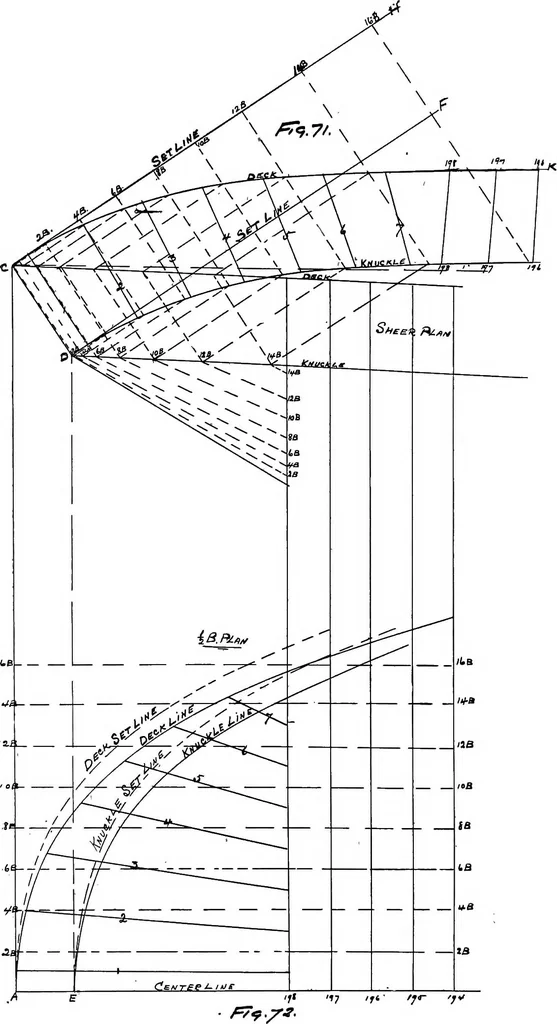

he batten where they cross same, as shown on plan. The buttock lines are also marked on the batten and if they coin-cide with the buttock lines on the expanded plating, the work is con-sidered correct. CANT FRAMES After the stern is all faired up the cant frames are run in on thehalf breadth plan.… … STEEL SHIP CONSTRUCTION 65 deck position of the frame on the sheer plan, as shown by dottedlines running from the cant frames in the half breadth plan I<ig. 73to the cant frames in the sheer plan Fig. 74. u^-7-5^ SPbpDeck
