A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)
Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 73

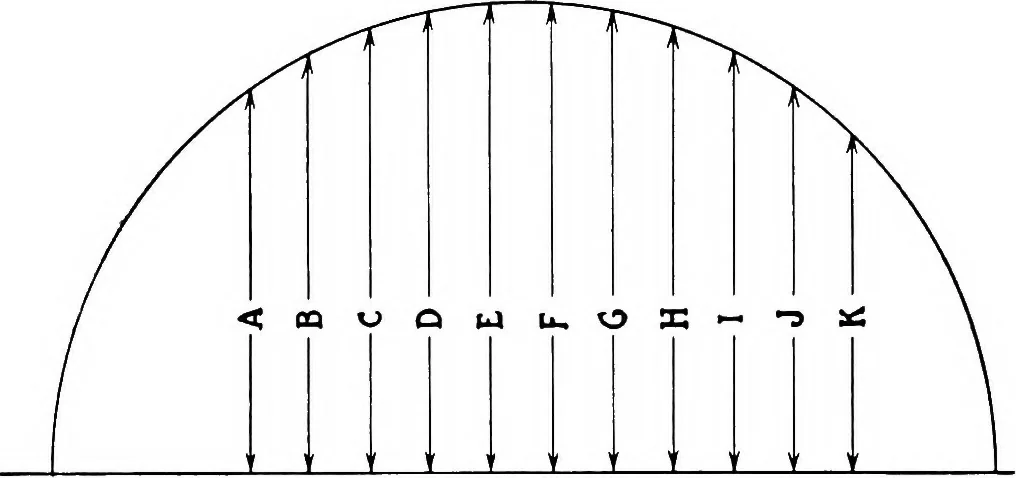

d aftmust bring out the uniform longitudinal planklines. Assuming that the sheer strake is to be 4 on the 70 COURSE. IN WOODEN BOAT AND SHIP BDIIjDING midship frame, 3i/4 at frame 1, and iy^ at frame11, the plank can be scaled as shown in Figure 34.Scribe a circle with a radius equal to the widthof… … 123456789 10 n Figure 34.—Scaling tor Sheer Strake. Likewise measure up, at right angles to the centerline, a distance equal to the width of the plank atframe 11 until it cuts the circle as at K. Divide the distance between these two lines onthe center line equally into as many spaces as thereare…
