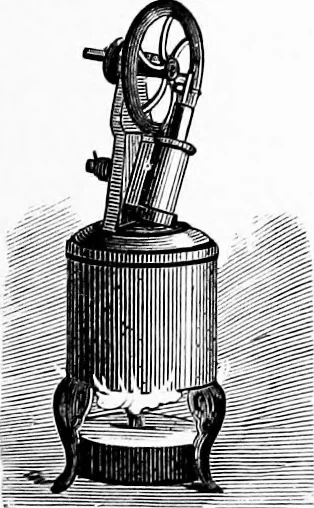

standard which supports the crankshaft also forms the support of the trun-nion of the oscillating cylinder. The pis-Fiity-cent Engine, ton is connected directly with the crankpin projecting from the fly wheel. The face of the cylinderwhich contacts with the standard forms the valve for admit-ting… … 196 EXPERIMENTAL SCIENXE. the steam ports. A spiral spring on the trunnion draws thecylinder against the standard. The cylinder thus arrangedis made to serve as a safety valve. A small alcohol lampis used as a source of heat. Fig, 194. ASCENSIONAL POWER OF HEATED AIR. The ascensional power of…
