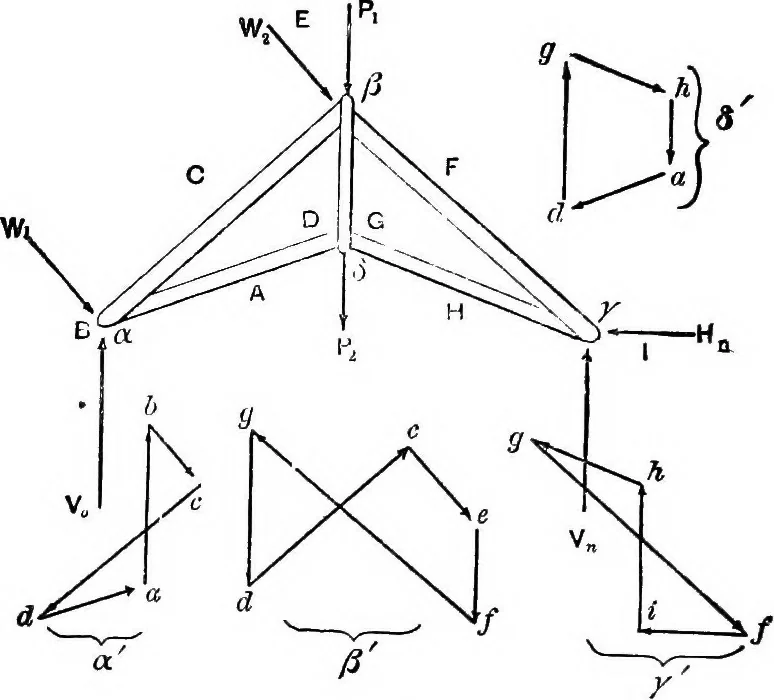

ing the amounts ofthose two forces by the lengths of the correspondingsides. We must .•. begin with a joint where no more than twopieces meet, as at a; [call the joints a, fi, y, 8, and the cor-corresponding force polygons a, /3 etc. Fig. 356.] Henceat a (anywhere on the paper) make ab || and = (by… … Fig. 356. To close the polygon draw through c a || to the pieceCD, and through a a || to AD; their intersection deter-mines d, and the polygon is closed. Since the arrowsmust be point to butt round the periphery, the force withwhich the piece CD acts on the pin of the joint a is aforce of an amount…
