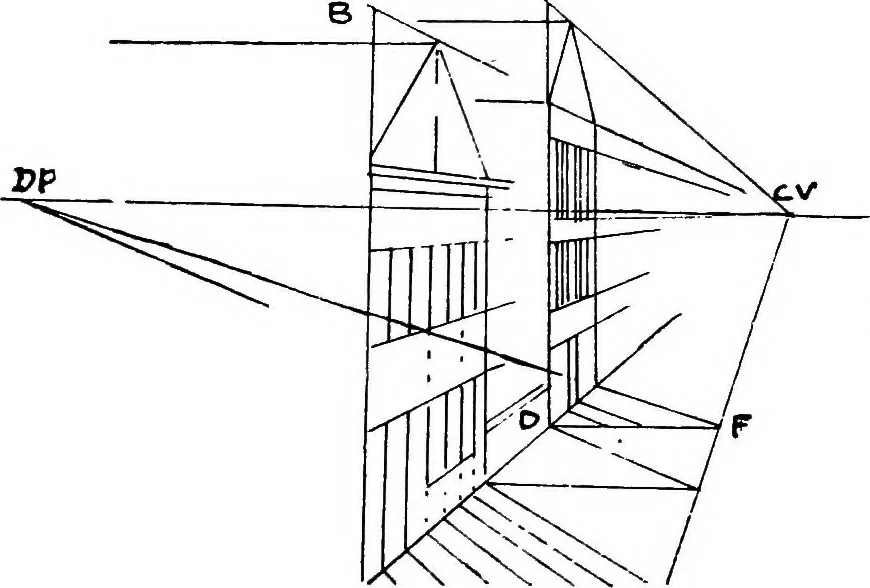

r second injunction, to keep our lines short, is acted A Few Hints to Draughtsmen 137 upon in Pig. 104 also. Thus the ground-line is the linefrom A to the right, just of sufficient length. Again, the V.P. of diagonals saves a large number oflines, and is also used in Fig. 104. If, lastly, we push… … Fi8. 105.—A new ground-line for each house. in which the fronts of the houses are measured fromnew ground-lines. Fig. 105 is practically a sketchreproduction of part of the Jesuits diagram. He covershis street with a chess-board, as he does everything.This gives him a number of horizontal lines…
