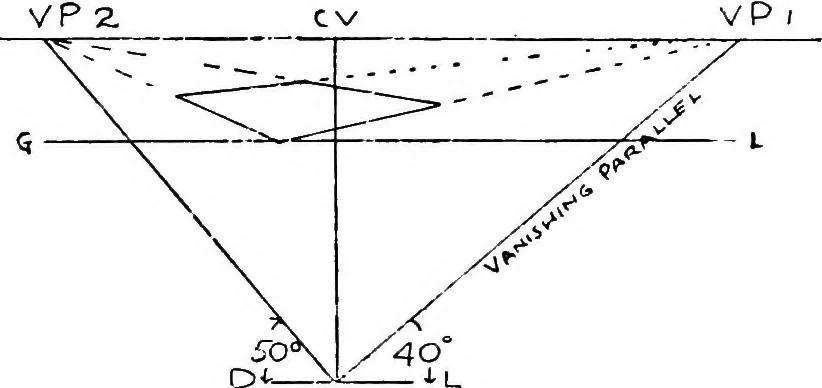

Fig. 41.—The eye and the angles Fig. 42.—The working lines,laid down into the picture. There we have the eye set down as far below (it might … fYE Fig 43.—Finding vanishing points. as well be above) the C.V. as it properly is before it.We have the D.L. parallel to the horizon. Against 64 Perspective this directing line are set up angles 40° on the rightand 50° on the left, which we will suppose are the anglesrequired. These vanishing…
