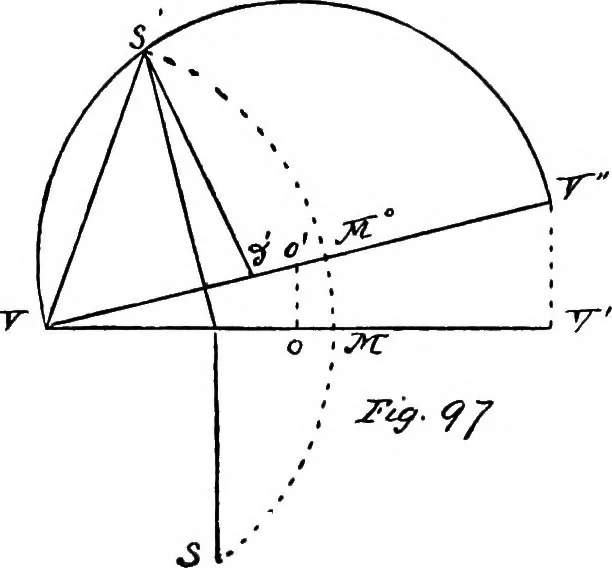

-^ f ^ 66 APPLIED PERSPECTIVE … No convenient relation appears between themitre points 8 and 8 (Fig. 97), so that if 8 isneeded, S must be found first; but this is verysimply done. The middle point 0 of VV>,centre of the semicircumference VS V, is ver-tically over 0, the middle point of VV. An arcdescribed from o as a centre…
