Applied perspective, for architects and painters (1901)
Longfellow, William Pitt Preble, 1836-1913 · Boston and New York, Houghton, Mifflin and company · leaf 164

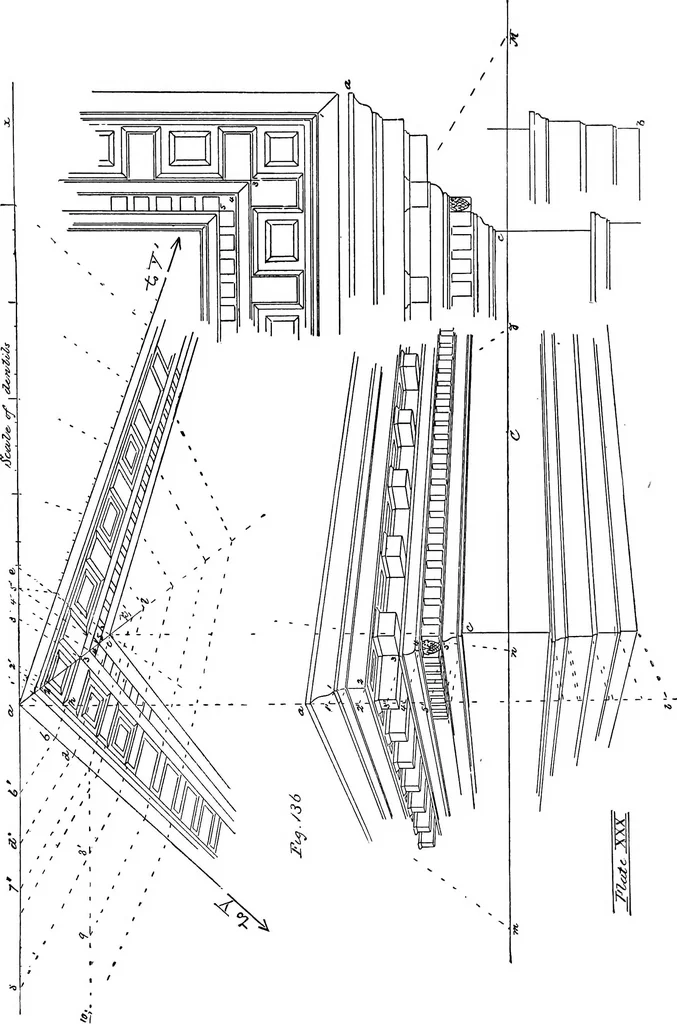

s between themodillions can be drawn with their mitres. The transference of these details to thepicture is a simple matter of vertical projection. Eggs and darts and the leaves ofthe bed-mould at the base of the cornice may be sketched in, one egg or one leafover or under each dentil; their… … A ROMANESQUE ARCADE In Fig. 137 a Romanesque arcade is shown in perspective. The geometric plan is onthe scale of the picture, the partial elevation on half that scale, the perspective charton one fifth. The arches are semicircles recessed in two orders, showing a main archand a sub-arch carried by…
Perspective
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
