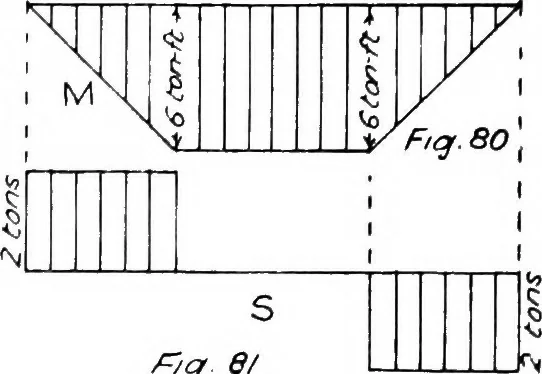

F-ig. 78 30 THE MEOHANIOrf OP BUILDING CONSTEUOTION cud; fiud the reactions and the nature and amount of the stresses in the bars ofthe frame. For answer, see Pigs. 77 and 78. r/of. 79 IF K -3.0- *t* Y- - -40- *r •■30- H/o.o- - H … /^/g e/ Q. 26. A girder 10 ft. span has two concentrated loads of 2 tons, each 2 ft.from the centre of span; show the bending moment and shear diagrams.For answer, see Figs. 79, 80 and 81. LECTURE V CoDstiuctiou of Bending Moment and Shear Diagrams, for Beams with StandardLoading and Supporting. A…
