Adams, Henry · London, New York [etc.] Longmans, Green, and Co. · leaf 49

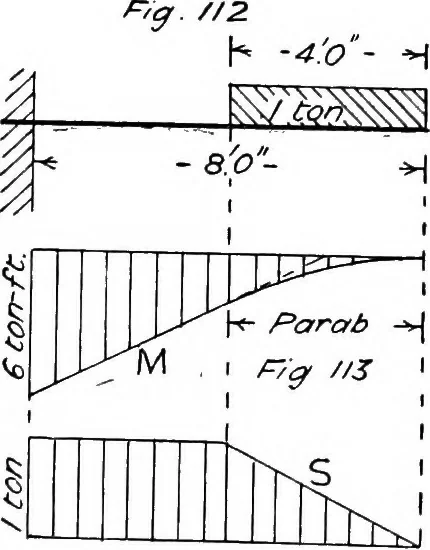

ng. //4 from A, 3 tons at 6 ft. from A and a distributed load of 1 ton per foot run for 4 ftfrom B. Construct the bending moment and shear diagrams. EXAMPLES FOR PKACTICE 35 For answer, see Figs. 107,108, and 109. Q. 28. Draw a parabola with a base of 2 in. and height of 21 in. For answer, see Fig.…
Building · Structural analysis (Engineering)
