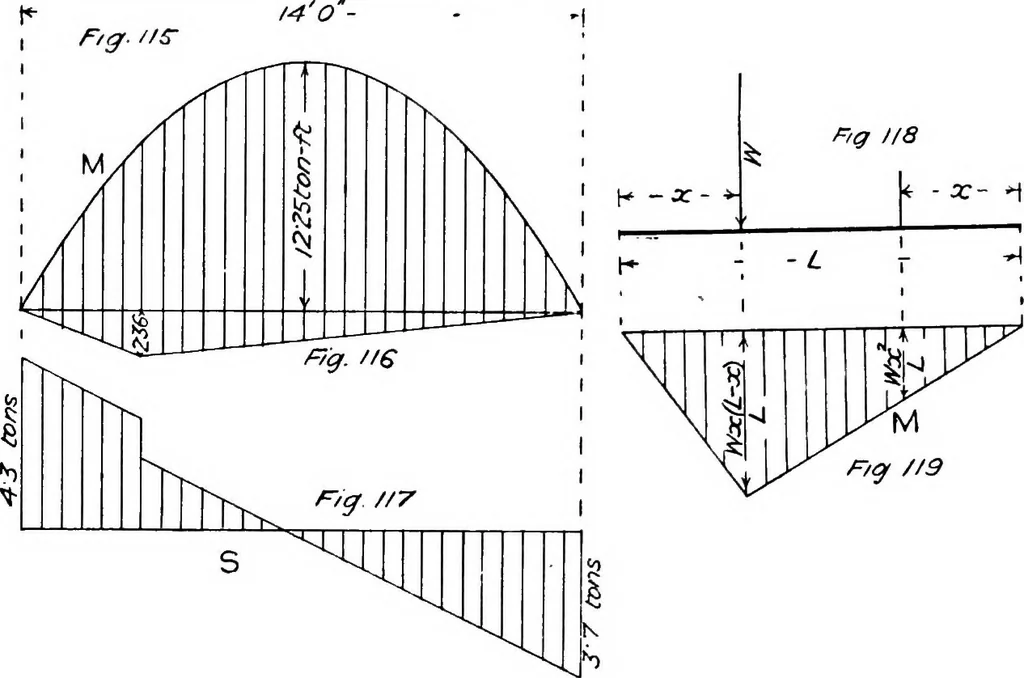

for 4 ftfrom B. Construct the bending moment and shear diagrams. EXAMPLES FOR PKACTICE 35 For answer, see Figs. 107,108, and 109. Q. 28. Draw a parabola with a base of 2 in. and height of 21 in. For answer, see Fig. 110. Q. 29. Draw by another method a parabola with a base of 3 in. and heightof J… … Q. 31. A girder, 11 ft. span, carries a uniformly distributed load of J ton perfoot run, and a concentrated load of 1 ton at 3 ft. from one end. Find the bend-ing moment and shear diagrams. For answer, see Figs. 115,116, and 117. Q. 82, A girder of £i span supported at the ends carries a…
