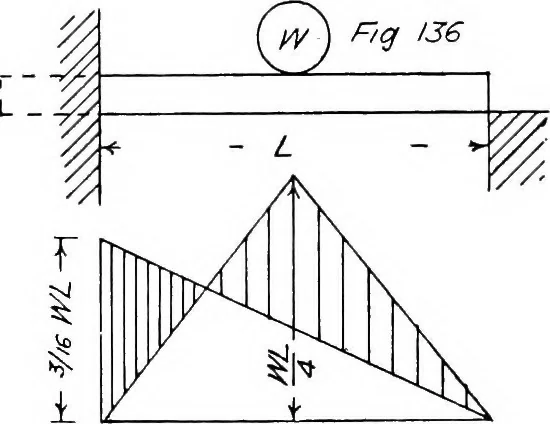

at the otherwith central load, as Fig. 136, thebending moment diagram will be asFig. 137, and the shear diagram asFig. 138. When fixed at one endand freely supported at the other,with a distributed [load, as Fig.139, the bending moment diagramwill be as Fig. 140, and the sheardiagram as Fig. 141.A… … r,g./57Plg 138 BEAMS WITH FIXED ENDS 43 a beam is continued beyond two simple supports it receives stresses inone or other of the forms shown. An important point to note in connection with continuous beamsis that the load on the supports is not proportioned as would appear to A /…
