Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 83

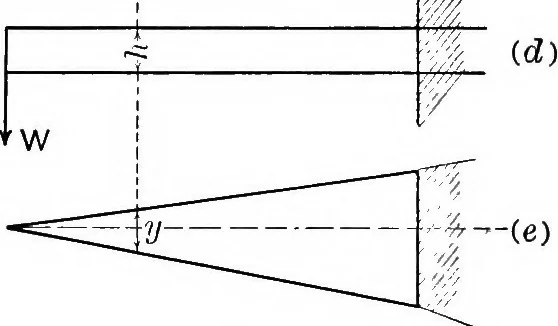

- w 7// Fig. 34 (b) shows an elevation, and (c) a plan of thisbeam. Of course the upper surface of the beam need not be plane, providedthe ys all equal the valueindicated above. Itshould also be noted that(5) the depth of the beamcannot be made zero atx = o. Sufficient areamust be left at this… … 6 Wx or y and Fig. 34 M2 the width at the wall is , 6WIand plan. See Fig. 34 (d) and (e) for the elevation Exercise 70. Design a cantilever of uniform strength ifit carries a uniformly distributed load. Test your answers by the theory of dimensions. STRESSES IN BEAMS 63 Exercise 71. Design a…
Mechanics
