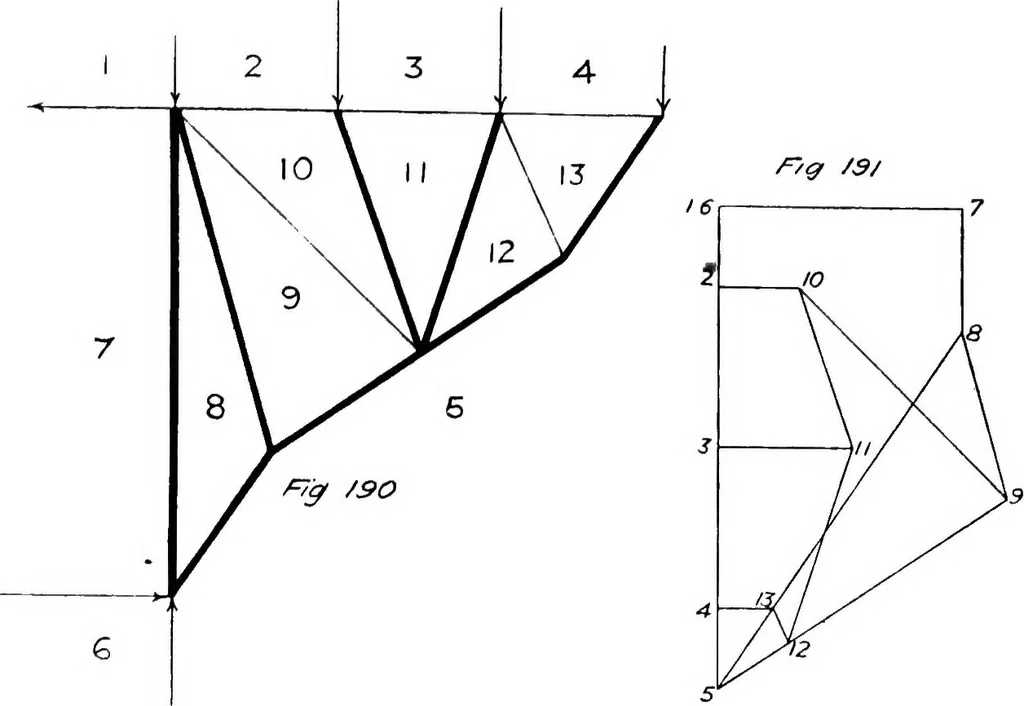

ri<y./8S which Fig. 186 is the stress diagram. It is, however, not essential tohold down the wall end at all. If the wall is sufficiently substantial to STRESSES IN BRACKETS 57 resist the couple caused by a direct pull from the top flange, and pushfrom the bottom flange, the same cantilever,… … occur when the end is held down. An ogee bracket of any pattern, asPig. 189, carrying a distributed load may have substituted membersinserted to give the frame diagram. Fig. 190, and will then have thepeculiar stress diagram shown in Fig. 191, and other examples of canti-levers may be found…
